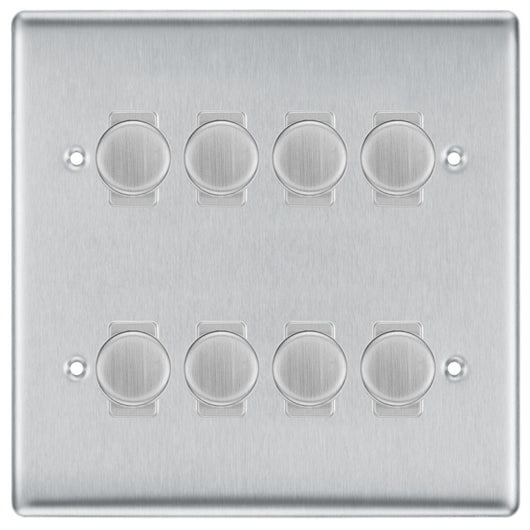

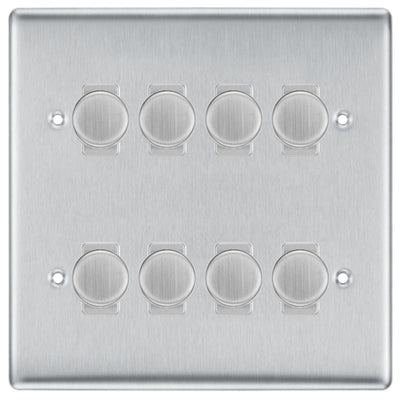

BG Brushed Steel 8 Gang Trailing Edge LED Dimmer Light Switch 2 Way Custom Switch
BG Brushed Steel Satin Chrome 8 Gang 2 Way Trailing Edge Dimmer LED Custom Grid
Please note that this switch will come in a grid format.
You will be sent the following parts all supplied by BG;
- MC503 - 1x 6 & 8 Gang Flush Mounting Metal Back Box
- RFR34 - 2x 3 & 4 Gang Grid Yoke Frame
- RNBS8 - 1x 8 Gang Cover Plate
- RBSDTR - 8x Dimmer Switch
The dimmer switches are ONLY compatible with trailing edge LED bulbs (Not compatible with leading edge). Please check that the bulbs you are using are compatible with the dimmer before purchasing.
Please find below the list of bulbs that the dimmer is capable of dimming and the list of wattages that are suitable.
|
Dimmer Module Technical Specifications |
|
|
Standard(s) |
BS EN 60669-2-1 |
|
Voltage |
200-250V AC |
|
Load Rating (Max/Min per module) Dimmable LED |
|
|
5-100W |
|
|
Tungsten/Incandescent |
5-200W |
|
Halogen |
20-200W |
|
Dimmable Compact Flourescent (CFL) |
5-100W |
|
Type |
Trailing Edge |
|
Terminal Capacity |
4 x 1mm² 4 x 1.5mm² 2 x 2.5mm² & 1 x 4.0mm² |
|
RoHS Directive |
Yes |
|
WEEE Directive |
Yes |
|
Mounting Box Depth (Min) |
25mm |
