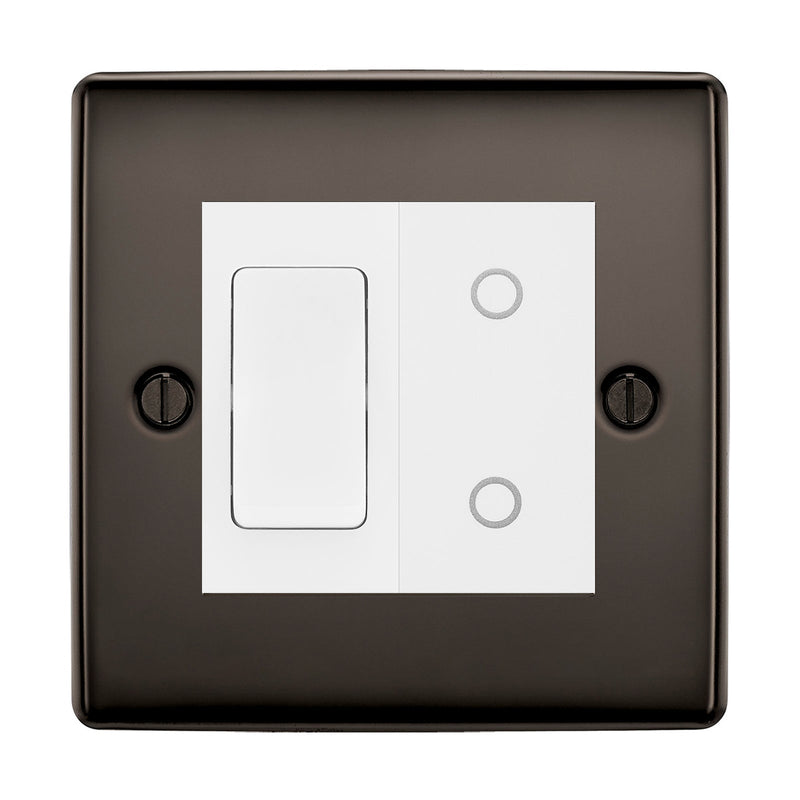

BG Black Nickel 2 Gang Custom Switch 1x 2 Way Switch 1x Secondary Touch Dimmer White Inserts
BG Black Nickel 2 Gang Custom Switch 1x 2 Way Switch 1x Secondary Touch Dimmer White Inserts
Please note that this switch will come in a Euro Module format.
You will be sent the following parts all supplied by BG:
- 1x Faceplate
- 1x 2 Way Switch
- 1x Slave Touch Dimmer
20AX 2 Way 1 Module Euro Module Switch
- 16AX switch
- 2 way
- One module width
- Minimum mounting box 25mm
- Manufactured to BS EN 60669-1
Touch Dimmer Switch – Intelligent Trailing Edge
BG secondary trailing edge touch dimmer that controls light levels and sets mood. Must be used in the same circuit as a master touch dimmer.
Dimmer modules can only handle 10 bulbs per dimmer module (100 LED Watts Max).
Intelligent trailing edge dimmers have a lower minimum load than leading edge dimmers, offering greater compatibility for LED, Halogen, CFL and incandescent lamps
Soft start brings the lights to a set level in around 1 second and extends the life of lamps
Overload protection prevents failure if you mistakenly connect your dimmer to too many lights or transformers, and will turn the lights down or off until the load is corrected
- Smooth dimming control
- Silent operation - no noise when dimming
- Support for lower wattage lamps eliminates flicker
- Touch dimmer control
- Captive backed out terminal screws prevent screw loss
- Manufactured to BS EN 60669-2-1
- 3 x 1mm² 2 x 1.5mm² & 1 x 2.5mm²
- Minimum mounting box depth – 25mm
Load Rating (Max/Min per module)
- Dimmable LED 5-100W
- Tungsten/Incandescent 5-200W
- Halogen 20-200W
- Dimmable Compact Fluorescent (CFL) 5-100W
Your grid switch arrives as a kit: a front plate, a metal grid frame and the switch modules you chose. Modules clip into the frame, the frame screws to the back box, and the plate fits over the top.
Safety first: Only fit this yourself if you are competent to do electrical work. Work must meet BS 7671, and some jobs (for example new circuits, or work in bathrooms) are notifiable under Part P in England and Wales. If in doubt, use a registered electrician.
- Switch the circuit off at the consumer unit and confirm it is dead with a voltage tester before touching any wiring.
- Unscrew the old switch, take a photo of the wiring and label which cable goes to which terminal.
- Check the back box is deep enough: at least 25 mm for switches, 35 mm for dimmers and larger plates (see the spec sheets below).
- Clip each module into the grid frame from the front, in the order shown on this listing, with the 'TOP' marking facing up.
- Wire each module: one-way uses COM and L1, two-way uses COM, L1 and L2, and an intermediate takes both pairs of strapper wires. For dimmers and 20A modules, follow BG's leaflet below.
- Connect the earth (green/yellow) cable to the earth terminal on the grid frame or metal plate.
- Screw the grid frame to the back box, then fit the front plate. Screwless plates clip over the frame.
- Switch the power back on and test every switch and dimmer.
