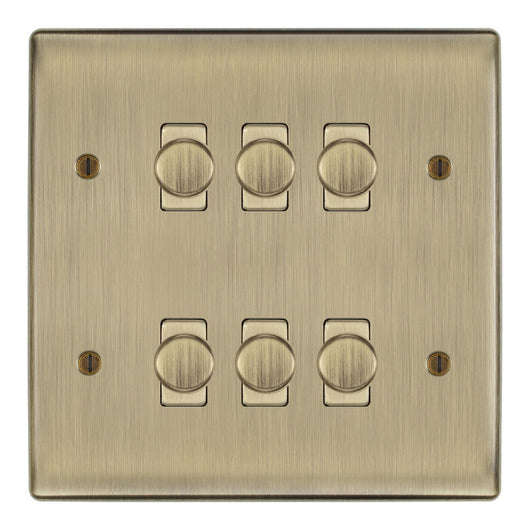

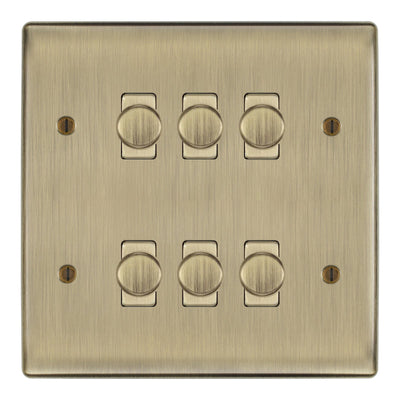

BG Antique Brass 6 Gang 2 Way Trailing Edge Dimmer LED Custom Grid Switch
BG Antique Brass 6 Gang 2 Way Trailing Edge Dimmer LED Custom Grid Switch
The versatile Antique Brass range from BG Nexus are popular options for both the vintage and contemporary setting. The aged effect of the plate adds a warmth unachievable with chromes. the range is extensive enough for a range of different environments and easy to maintain thanks to the lacquered surface.
The dimmer switches are ONLY compatible with trailing edge LED bulbs (Not compatible with leading edge). Please check that the bulbs you are using are compatible with the dimmer before purchasing.
Please note that this switch will come in a grid format.
You will be sent the following parts all supplied by BG;
- RFR34 - 2x 3 & 4 Gang Grid Yoke Frame
- RNAB6 - 1x 6 Gang Cover Plate
- RABDTR - 6x Dimmer Switch
- MC503 - Flush Mounting Metal Back Box
Please find below the list of bulbs that the dimmer is capable of dimming and the list of wattages that are suitable.
|
Dimmer Module Technical Specifications |
|
|
Standard(s) |
BS EN 60669-2-1 |
|
Voltage |
200-250V AC |
|
Load Rating (Max/Min per module) Dimmable LED |
|
|
5-100W |
|
|
Tungsten/Incandescent |
5-200W |
|
Halogen |
20-200W |
|
Dimmable Compact Flourescent (CFL) |
5-100W |
|
Type |
Trailing Edge |
|
Terminal Capacity |
4 x 1mm² 4 x 1.5mm² 2 x 2.5mm² & 1 x 4.0mm² |
|
RoHS Directive |
Yes |
|
WEEE Directive |
Yes |
|
Mounting Box Depth (Min) |
25mm |
