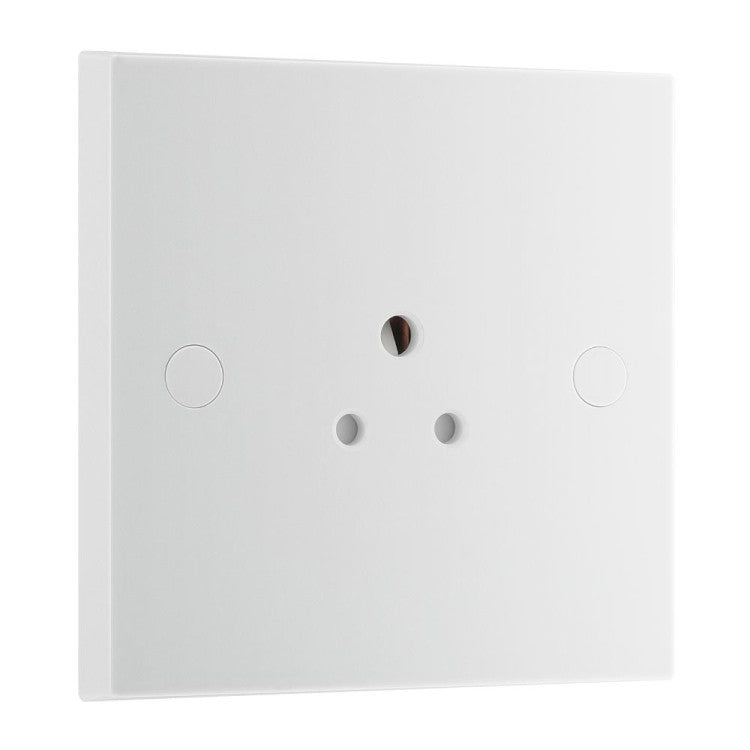

BG 928 Moulded Square Edge | White | 1 Gang 2A Unswitched Round Pin Socket

This is the BG Nexus 928 White Plastic, a 1 Gang 2A Round Pin Unswitched Socket Moulded White Square Edge

This 900 series white moulded 2A round pin socket from British General can be used to connect low power appliances and can be used to connect lamps to a lighting circuit.

Its moulded white front-plate has a high resistance to fading discolouration and scratches, with inherent anti-microbial properties proven to reduce bacterial development and inhibit the growth of infectious diseases.

Designed with angled in-line terminals and captive screws for ease of installation, and finished with classic square edges and screw caps for a sleek appearance.

1 Gang 2A Round Pin Unswitched Socket Moulded White Square Edge - Features

• 2A Rated
• Easy to install, supplied with fixing screws and installation instructions

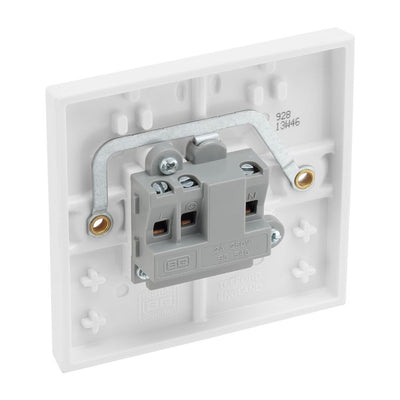

• Angled in-line terminals provide easy access for quick installation
• Captive screws prevent screw loss
• Screw covers for sleek appearance
• Twin earth fitted as standard to allow a double earth facility for installations requiring high integrity protective connection Ref. BS 7671:2008
• Minimum mounting box depth 25mm
• Anti-microbial certified - inhibits 99% of bacterial growth on touch point surfaces from infectious diseases, including MRSA, E-Coli, Salmonella and Klebsiella Pneumonia bacteria
• Certified to BS 546

1 Gang 2A Round Pin Unswitched Socket Moulded White Square Edge - Specs

• It is a 2A Round Pin Unswitched Socket
• White moulded square edge profile offering exceptional value
• Standard(s): BS 546
• Rating: 2 Amp 250V AC
• Switch Type: no switch, unswitched socket
• Terminal Capacity: 4 x 1.0mm² 3 x 1.5mm² 1 x 2.5mm² 1 x 4.0mm²
• RoHS Directive
• WEEE Directive
• Mounting Box Depth (Min): 25mm
• Fixing Centres: 60.3mm
• CE Mark
• Dimensions: 86mm width x 86mm length x 24mm depth
• Front plate height: 10mm
• IP rating: IP20 rated
