BG 923 Moulded Square Edge | White | 1 Gang 13A Unswitched Socket

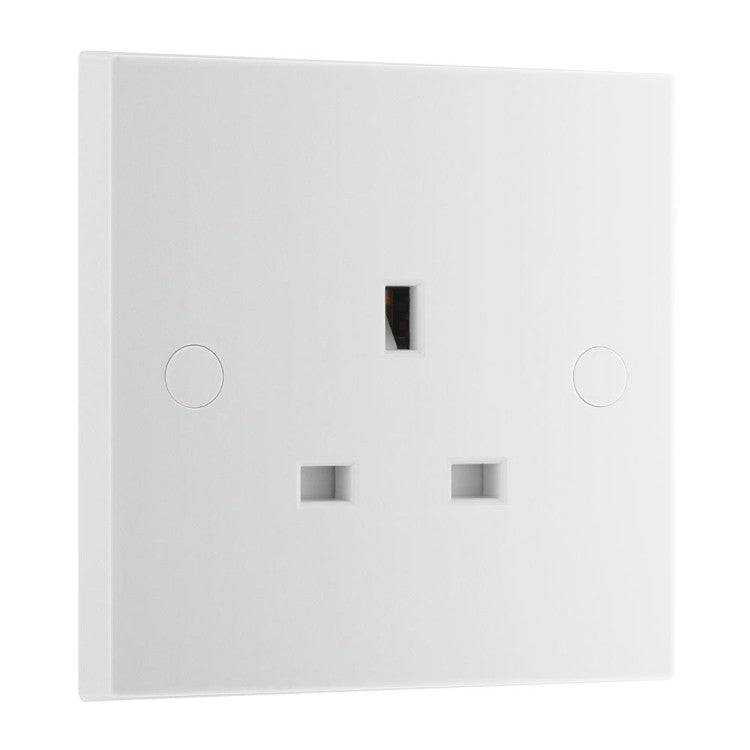

This is the BG 923 White Plastic, a 1 Gang 13A Unswitched Single Socket Outlet White Moulded Square Edge

This 900 series white moulded unswitched socket from British General is always on when a plug is inserted so it doesn’t need a switch to control the power.

Great for use on appliances that have control switches elsewhere like a television or kettle. Its moulded white front-plate has a high resistance to fading, discolouration and scratches, with inherent anti-microbial properties proven to reduce bacterial development and inhibit the growth of infectious diseases.

Designed with angled in-line terminals and captive screws for ease of installation, and finished with classic square edges and screw caps for a sleek appearance.

1 Gang 13A Unswitched Single Socket Outlet White Moulded Square Edge - Features

• Rating: 13A Rated
• Easy to install, supplied with fixing screws and installation instructions

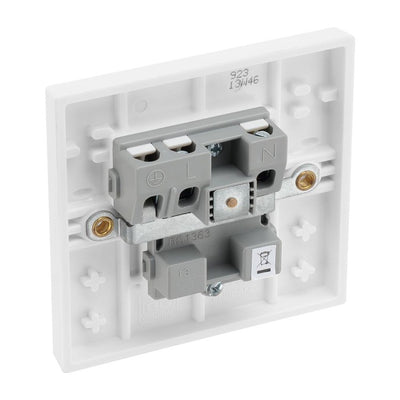

• Angled in-line terminals provide easy access for quick installation
• Captive screws prevent screw loss
• Screw covers for sleek appearance
• Twin earth fitted as standard to allow a double earth facility for installations requiring high integrity protective connection Ref. BS 7671:2008
• Minimum mounting box depth 25mm
• Manufactured using high grade thermoset Urea which effectively inhibits the growth of infectious diseases, including MRSA, E-Coli, Salmonella and Klebsiella Pneumonia bacteria
• Certified to BS1363-2
• ASTA Licence number 1013

1 Gang 13A Unswitched Single Socket Outlet White Moulded Square Edge - Specs

• Power socket for standard 3 pin UK plug, single gang
• White moulded square edge profile offering exceptional value
• Standard(s): BS 1363-2:2016+A1:2018
• Rating: 13 Amp 250V AC
• Switch Type: unswitched, no switch
• Terminal Capacity: 3 x 2.5mm² 3 x 4mm² 2 x 6mm²
• RoHS Directive
• WEEE Directive
• Mounting Box Depth (Min): 25mm
• Fixing Centres: 60.3mm
• CE Mark
• Dimensions: 86mm width x 86mm length x 26.7mm depth
• Front plate height: 10mm
• IP rating: IP20 rated
