BG 830 Moulded Round Edge | White | 1 Gang 20A 2 Pole Switch
UK Stock
VAT Invoice
Trade Friendly
Order by 12pm for same-day dispatch
Genuine Brand
Dispatch:
Next working day
Bulk Pricing
Save more when you buy in bulk
2+ items
£2.75 approx. each
2% off
5+ items
£2.73 approx. each
3% off
10+ items
£2.67 approx. each
5% off
20+ items
£2.61 approx. each
7% off
Description

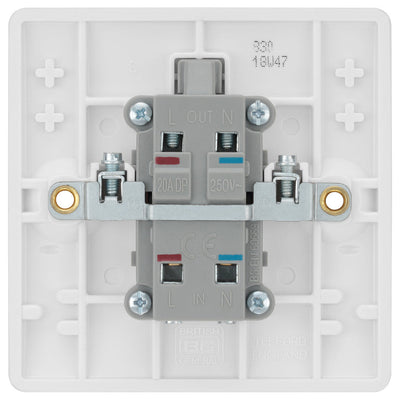

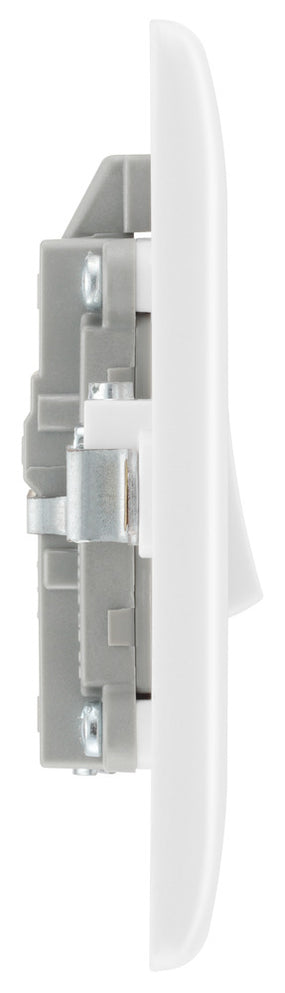

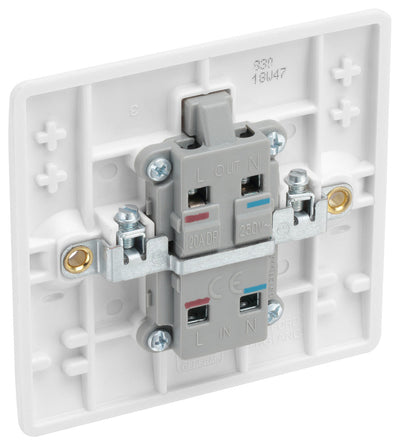

BG 830 Moulded Round Edge | White | 1 Gang 20A 2 Pole Switch
- 20A Rated
- Easy to install, supplied with fixing screws and installation instructions
- Suitable for use with refrigerators, water heaters, central heating boilers and many other fixed appliances
- Colour coded terminals for easy identification and quick installation
- Captive screws prevent screw loss
- Screw covers for sleek appearance
- Double Pole switching for the peace of mind of a safer installation
- Minimum mounting box depth 25mm
This Nexus 800 series white moulded 20A double pole switch from British General has been designed for the connection of refrigerators water heaters, central heating boilers and many other fixed appliances. Its moulded white front-plate has a high resistance to fading, discolouration and scratches, with inherent anti-microbial properties proven to reduce bacterial development and inhibit the growth of infectious diseases.
Designed with colour coded terminals and captive screws for ease of installation, and finished with soft rounded edges and screw caps for a premium appearance.
Designed with colour coded terminals and captive screws for ease of installation, and finished with soft rounded edges and screw caps for a premium appearance.
Specifications & downloads
| General Colour | White |
|---|---|
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Minimum Box Depth (mm) | 25 |
| Terminal Capacity (# x mm²) | 2 x 2.5, 1 x 4, 1 x 6 |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | Yes |
| Fixing Screws Supplied | Yes |
| Terminal Arrangement | Not Applicable |
| Terminals with Colour Coding Print | Yes |
| Number of Switches | 1 |
| Screw Caps | Yes |
| Switch Style Type | Rocker |
| Switch Type (Ways & Poles) | Double Pole |
| Switch Location Position | Wall |
| Fixing Centres (mm) | W-60.3 |
| IP Rating | IP20 |
| Operating Voltage (V) | 220-240 |
| Switch State | On/Off |
| Warranty (years) | 30 |
Downloads
