BG 822CON Moulded Round Edge | White | 13A SP Converter Switched Socket
UK Stock
VAT Invoice
Trade Friendly
Order by 12pm for same-day dispatch
Genuine Brand
Dispatch:
Next working day
Bulk Pricing
Save more when you buy in bulk
2+ items
£5.80 approx. each
2% off
5+ items
£5.74 approx. each
3% off
10+ items
£5.62 approx. each
5% off
20+ items
£5.51 approx. each
7% off
Description

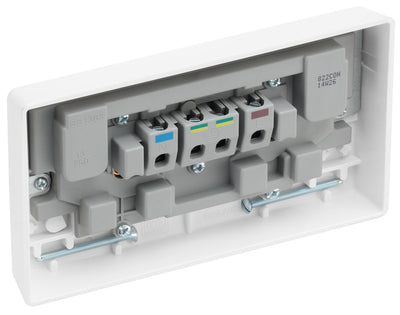

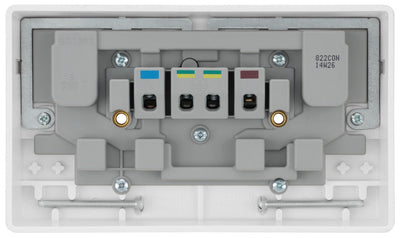

BG 822CON Moulded Round Edge | White | 13A SP Converter Switched Socket
- 13A Rated
- Easy to install, supplied with fixing screws and installation instructions
- Enables quick conversion of single sockets in to double sockets with no need to alter the wall box
- Angled in-line colour coded terminals provide easy access for quick installation
- Captive screws prevent screw loss
- Screw covers for sleek appearance
- Twin earth fitted as standard to allow a double earth facility for installations requiring high integrity protective connection Ref. BS 7671:2008
- Minimum mounting box depth 25mm
- Certified to BS1362-2
This Nexus 800 series white moulded 13A socket from British General converts a single socket to a double socket with no alteration to the wall box for ultimate convenience when you need additional power points in you room. Its moulded white front-plate has a high resistance to fading discolouration and scratches, with inherent anti-microbial properties proven to reduce bacterial development and inhibit the growth of infectious diseases.
Designed with captive screws and colour coded terminals for ease of installation, and finished with soft rounded edges and screw caps for a premium appearance.
Designed with captive screws and colour coded terminals for ease of installation, and finished with soft rounded edges and screw caps for a premium appearance.
Specifications & downloads
| General Colour | White |
|---|---|
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Minimum Box Depth (mm) | 25 |
| Terminal Capacity (# x mm²) | 3 x 2.5, 3 x 4, 2 x 6.0 |
| Front Plate Insert Colour | Not Applicable |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | Yes |
| Fixing Screws Supplied | Yes |
| Number of Earth Terminals | 2 |
| Terminal Arrangement | Angled, Inline |
| Terminals with Colour Coding Print | Yes |
| Number of Sockets | 2 |
| Socket Type | G-3P UK Ireland Hong Kong 220-240V 13A |
| Number of Switches | 2 |
| Screw Caps | Yes |
| Switch Type (Ways & Poles) | Single Pole |
| Fixing Centres (mm) | W-120.6 |
| IP Rating | IP20 |
| Operating Voltage (V) | 220-240 |
| Warranty (years) | 30 |
