BG 822 Moulded Round Edge | White | 2 Gang 13A 1 Pole Switched Socket
UK Stock
VAT Invoice
Trade Friendly
Order by 12pm for same-day dispatch
Genuine Brand
Dispatch:
Next working day
Bulk Pricing
Save more when you buy in bulk
2+ items
£2.59 approx. each
2% off
5+ items
£2.56 approx. each
3% off
10+ items
£2.51 approx. each
5% off
20+ items
£2.46 approx. each
7% off
Description

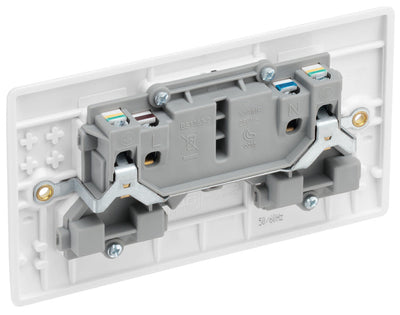

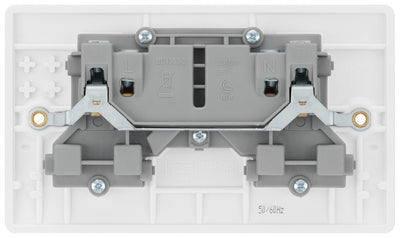

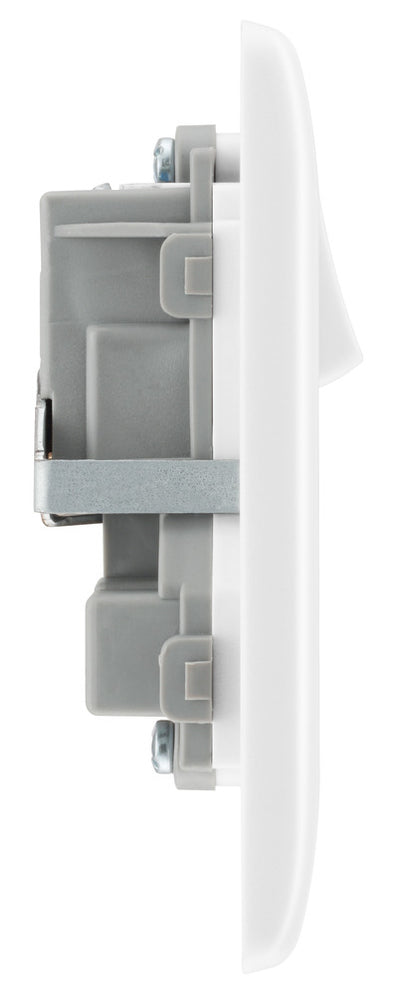

BG 822 Moulded Round Edge | White | 2 Gang 13A 1 Pole Switched Socket
- 13A Rated
- Easy to install, supplied with fixing screws and installation instructions
- Angled in-line colour coded terminals provide easy access for quick installation
- Captive screws prevent screw loss
- Screw covers for sleek appearance
- Twin earth fitted as standard to allow a double earth facility for installations requiring high integrity protective connection Ref. BS 7671:2008
- Minimum mounting box depth 25mm
- Certified to BS1363-2
This Nexus 800 series white moulded 13A double switched socket from British General has a high resistance to fading discolouration and scratches, with inherent anti-microbial properties proven to reduce bacterial development and inhibit the growth of infectious diseases. Designed with angled in-line terminals and captive screws for ease of installation, and finished with softly rounded edges and screw caps for a sleek appearance.
Specifications & downloads
| General Colour | White |
|---|---|
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Minimum Box Depth (mm) | 25 |
| Terminal Capacity (# x mm²) | 3 x 2.5, 3 x 4, 2 x 6.0 |
| Front Plate Insert Colour | Not Applicable |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | Yes |
| Fixing Screws Supplied | Yes |
| Number of Earth Terminals | 2 |
| Terminal Arrangement | Angled, Inline |
| Terminals with Colour Coding Print | Yes |
| Number of Sockets | 2 |
| Socket Type | G-3P UK Ireland Hong Kong 220-240V 13A |
| Number of Switches | 2 |
| Screw Caps | Yes |
| Switch Type (Ways & Poles) | Single Pole |
| Fixing Centres (mm) | W-120.6 |
| IP Rating | IP20 |
| Operating Voltage (V) | 220-240 |
| Warranty (years) | 30 |
