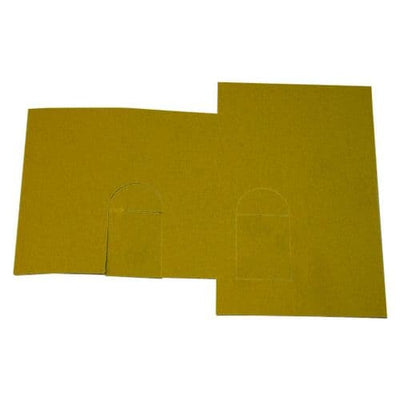

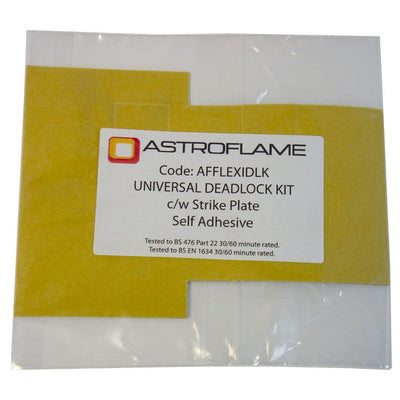

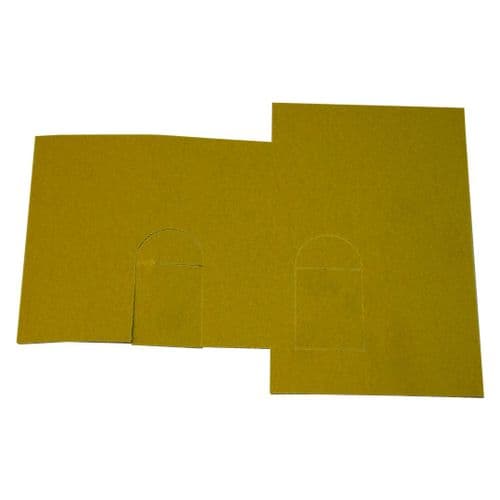

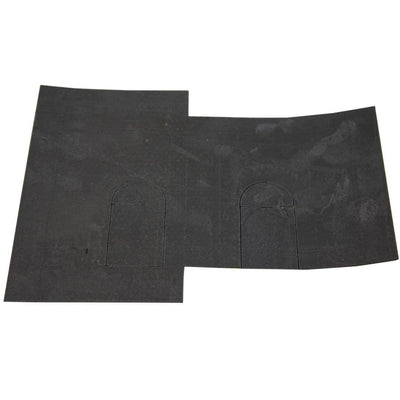

Astroflame Universal Deadlock Kit To Suit 64/76mm Backset C/W Strike Plate - Self Adhesive

Key Points:

• Intumescent lock and latch pad kits for FD30 and FD60
• Flexible intumescent ironmongery material
• Round / square lock and latch material
• Ideal for both square and radius ends
• Multi-directional expansion and pressure provides structure and integrity when filling rebates and voids.
• Unaffected by moisture, humidity, atmospheric pollution and other common industrial and household chemical substances.
• Only 0.8mm thick - so minimal rebating required.
• Successfully tested for 30 & 60 minute applications.
• Very flexible and clean to work with.
• Will bend without cracking.
• Self adhesive backing
• Test in accordance with BS 476 Part 22 : 1987 and BS EN 1634-1.
• 3rd party accredited IFC 1745 for hardware protection products.
• Available with full traceability print.

Description:

A flexible intumescent self adhesive lock and latch pad kits for Fire Doors (FD30 and FD60). Stormflame recommends this lock and latch pad kits when working and installing fire door locks and latches. Protect your area with the lock and latch pad kit and slow the rate of fire/smoke spreading.

The Universal Deadlock - SD Kit are a graphite-based intumescent material that offers high levels of expansion and insulation, preventing heat transfer on rebated hardware. All ironmongery installed on a fire door must be fitted without compromising the integrity of the complete fire door assembly. This is of particular importance where ironmongery is rebated into the doorset such as hinges, locks, latches.

As the material reaches its activation temperature of 180°, the intercalated graphite particles expand many times their original volume. These Universal Deadlock - SD Kit are an ultra thin and flexible high performance graphite based intumescent sheet. At 0.8mm the universal deadlock kit offers high levels of expansion and insulation preventing heat transfer on ironmongery rebated into timber doorsets.

Flexible and fully customisable the universal deadlock kit are suitable for use on all types of fire rated hardware. For instance Door Hinges, Door Locks and Latches to suit 64/76mm backset C/W strike plate. Please check that your hardware test evidence is compatible with these Universal Deadlock - SD Kit prior to installation.

Specification:

• Self adhesive Universal deadlock - SD kit 64/76mm backset C/W strike plate
• Only 0.8mm thick
• Round / square intumescent ironmongery material

Download and review any of the following information:

Certification/Fire Test Reports:
