Astroflame Smoke Rated Threshold Seals

Astroflame Smoke Rated Threshold Seals

Astroflame Smoke Rated Threshold Seals include a threshold plate seal (RP97Si) particularly suited for outward opening broad butt hinged plant room and emergency exit doors, and a weather proof threshold plate seal (RP117Si) suited to outward opening broad butt hinged doors.

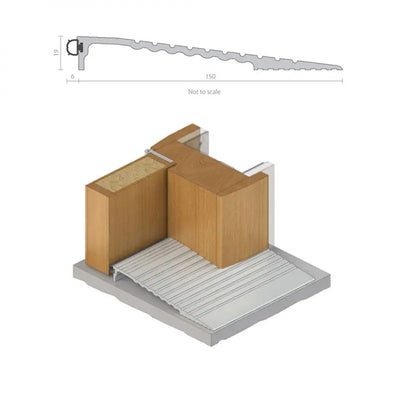

• A threshold plate seal particularly suited for outward opening broad butt hinged plant room and emergency exit doors
• Designed for areas with a high level of use such as public places such as hospitals, airports, factories, shopping centres or areas with a large flow through of pedestrian and wheeled traffic
• Specify order length wider than door opening to provide a neat detail at door frame

Ordering References

• For acoustic applications the void under the RP97si should be filled with sound proof foam or other suitable materials (by others)
• Note: RP67 drip cap should be considered above doorway if opening has no eave weather protection

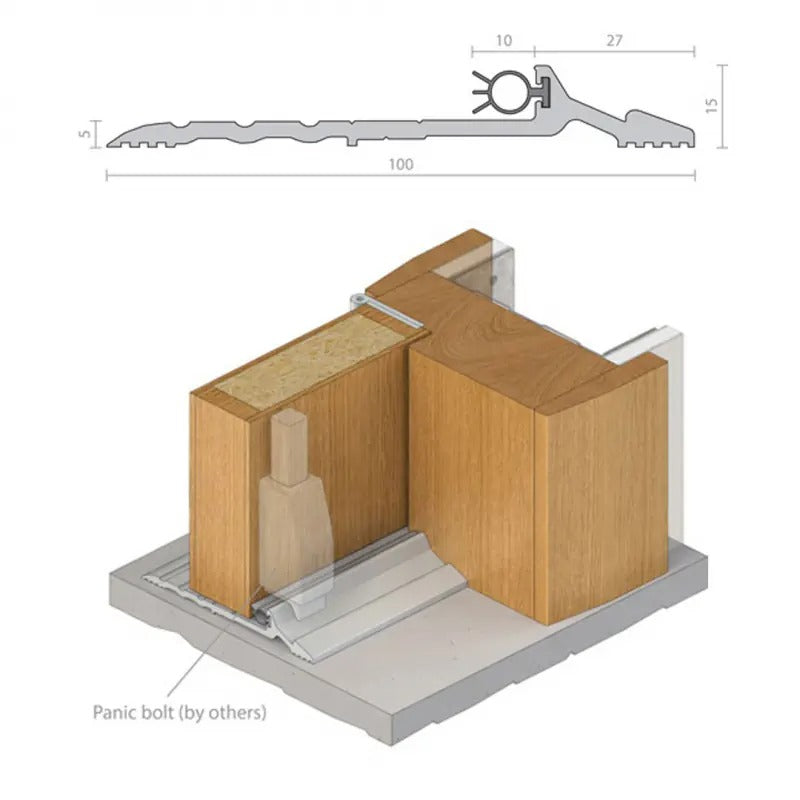

• The RP117Si is a weather proof threshold plate seal suited to outward opening broad butt hinged doors
