Astroflame Intumescent Ironmongery Single Door Pack For Fire Doors

Original price £6.70 - Original price £6.70
Original price
£6.70
£6.70 - £6.70
Current price £6.70

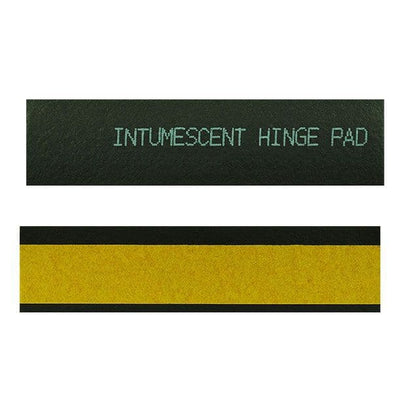

Astroflame Intumescent Ironmongery Single Door Pack For Fire Doors

Key Points:

  • Intumescent hinge pad and sheet for FD30 and FD60
  • Square hinge pad and sheet material
  • Multi-directional expansion and pressure provides structure and integrity when filling rebates and voids.
  • Unaffected by moisture, humidity, atmospheric pollution and other common industrial and household chemical substances.
  • Only 0.8mm thick - so minimal rebating required.
  • Successfully tested for 30 & 60 minute applications.
  • Very flexible and clean to work with.
  • Will bend without cracking.
  • Self adhesive backing
  • Test in accordance with BS 476 Part 22 : 1987 and BS EN 1634-1.
  • 3rd party accredited IFC 1745 for hardware protection products.
  • Available with full traceability print.

Description:

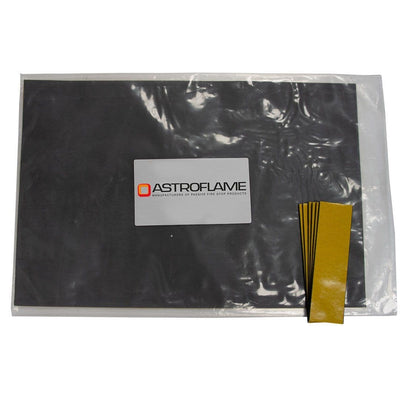

A flexible intumescent hinge pad and sheet for Fire Doors (FD30 and FD60). Stormflame recommends these Single Door Pack which includes 6 x square hinge pads and 1 x intumescent sheet when working and installing fire doors. Protect your area with the Single Door Pack and slow the rate of fire/smoke spreading.

The Intumescent Ironmongery Single Door Pack For Fire Doors are a graphite-based intumescent material that offers high levels of expansion and insulation, preventing heat transfer on rebated hardware. All ironmongery installed on a fire door must be fitted without compromising the integrity of the complete fire door assembly. This is of particular importance where ironmongery is rebated into the doorset such as hinges, locks, latches.

As the material reaches its activation temperature of 180°, the intercalated graphite particles expand many times their original volume. These Single Door Packs are an ultra thin and flexible high performance graphite based intumescent sheet. At 0.8mm the Intumescent Ironmongery Single Door Pack offers high levels of expansion and insulation preventing heat transfer on ironmongery rebated into timber doorsets.

Flexible and fully customisable the Single Door Packs are suitable for use on all types of fire rated hardware. For instance on Door Hinges, Door Locks and Latches, Flush Bolts and Door Controls. Please check that your hardware test evidence is compatible with these Intumescent Ironmongery Single Door Packs prior to installation.

Specification:

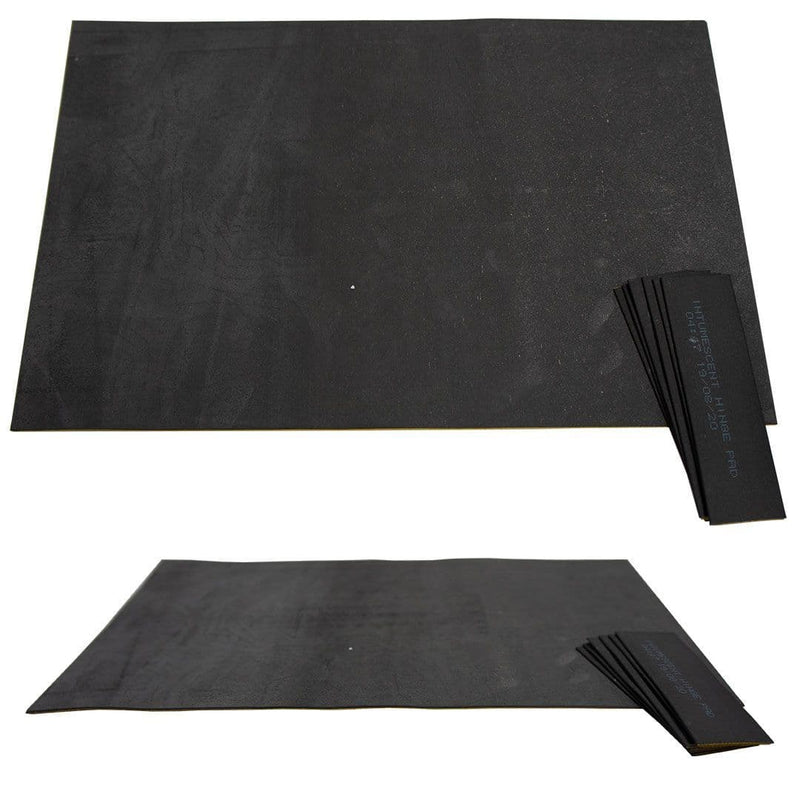

  • Hinge Pads - Pack of 6, Standard size 30x100mm
  • Single (1x) Intumescent Sheet Material - Size 300x200mm for FD30 and FD60
  • All Single Door Packs are packaged in a poly bag
  • Only 0.8mm thick
  • Square hinge pad and sheet material
  • Intumescent ironmongery material

Download and review any of the following information:

Certification/Fire Test Reports:

'IFC' are 'International Fire Consultant Certificates'
