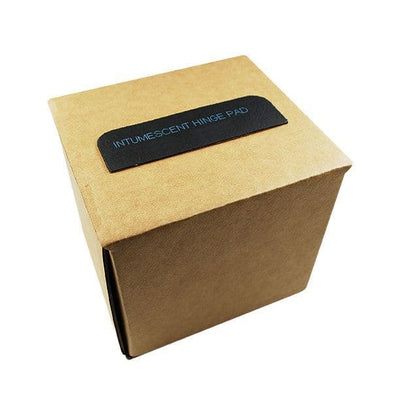

Astroflame Intumescent Ironmongery Self Adhesive Radius Hinge Pads For Fire Doors 30x100 (300 Pieces per box) S/A

Key Points:

• Intumescent self adhesive hinge pad for FD30 and FD60
• Radius hinge pad material
• Various packs available
• Multi-directional expansion and pressure provides structure and integrity when filling rebates and voids.
• Unaffected by moisture, humidity, atmospheric pollution and other common industrial and household chemical substances.
• Only 0.8mm thick - so minimal rebating required.
• Successfully tested for 30 & 60 minute applications.
• Very flexible and clean to work with.
• Will bend without cracking.
• Available with or without self adhesive backing
• Test in accordance with BS 476 Part 22 : 1987 and BS EN 1634-1.
• 3rd party accredited IFC 1745 for hardware protection products.
• Available with full traceability print.

Description:

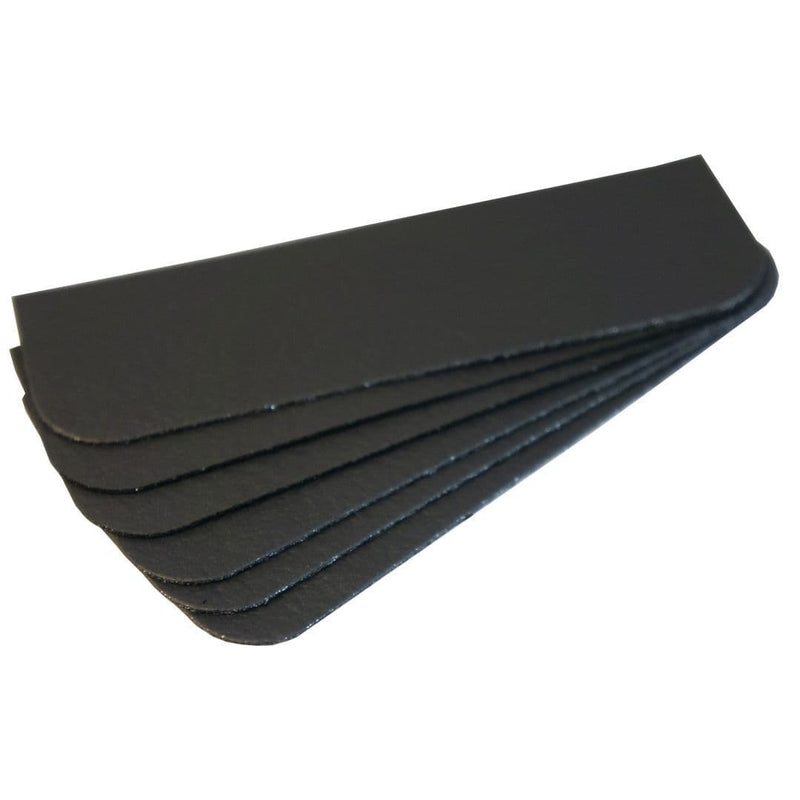

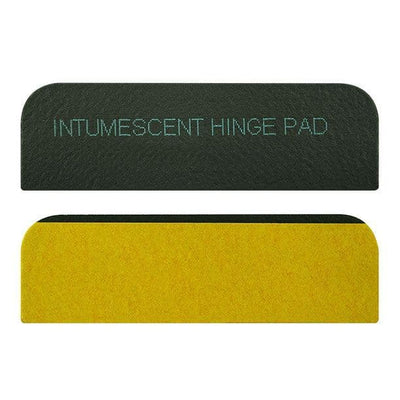

A flexible self adhesive radius intumescent hinge pad for Fire Doors (FD30 and FD60). Stormflame recommends this self adhesive radius Hinge pad when working and installing fire door hinges. Protect your area with the hinge pad and slow the rate of fire/smoke spreading.

The Intumescent Ironmongery Radius Self Adhesive Hinge Pads For Fire Doors (Pack of 300) are a graphite-based intumescent material that offers high levels of expansion and insulation, preventing heat transfer on rebated hardware. All ironmongery installed on a fire door must be fitted without compromising the integrity of the complete fire door assembly. This is of particular importance where ironmongery is rebated into the doorset such as hinges, locks, latches.

As the material reaches its activation temperature of 180°, the intercalated graphite particles expand many times their original volume. These self adhesive radius intumescent hinge pads are an ultra thin and flexible high performance graphite based intumescent sheet. At 0.8mm the self adhesive radius intumescent hinge pads offers high levels of expansion and insulation preventing heat transfer on ironmongery rebated into timber doorsets.

Flexible and fully customisable the self adhesive radius intumescent hinge pads are suitable for use on all types of fire rated hardware, for instance on Door Hinges. Please check that your hardware test evidence is compatible with these Intumescent Ironmongery Self Adhesive Radius Hinge Pads For Fire Doors (Pack of 300) prior to installation.

Specification:

• Standard size 30x100mm

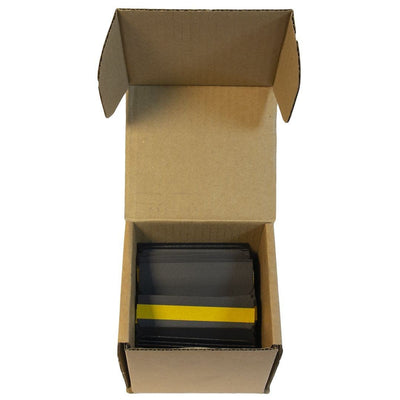

• 300 pieces packaged in box
• Only 0.8mm thick
• Round intumescent ironmongery material

Download and review any of the following information:

Certification/Fire Test Reports:
