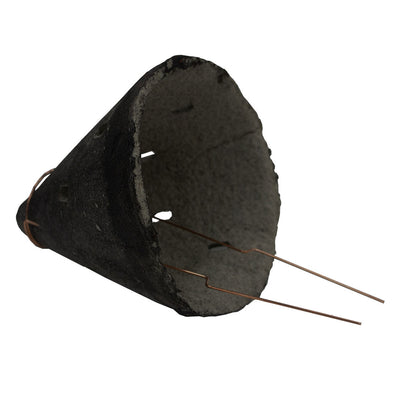

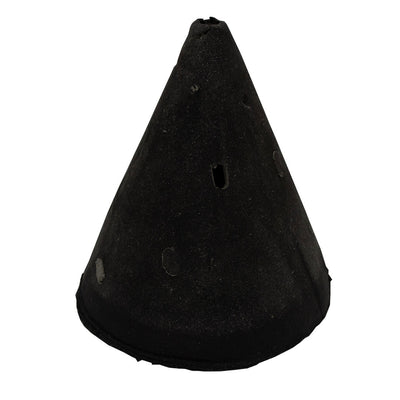

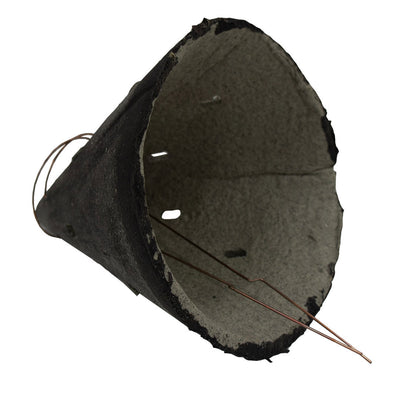

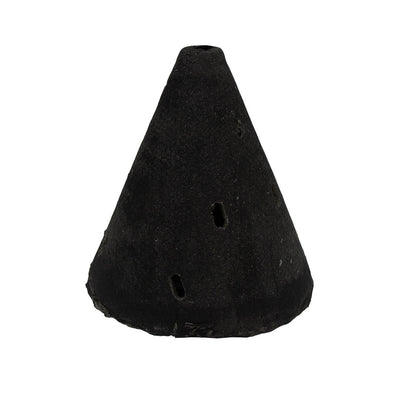

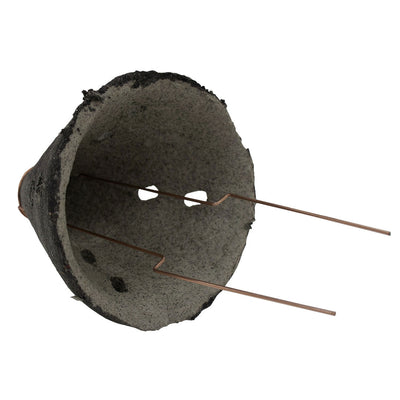

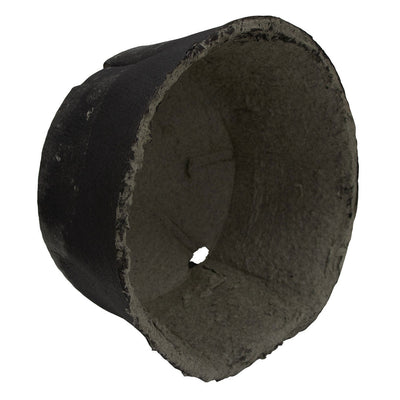

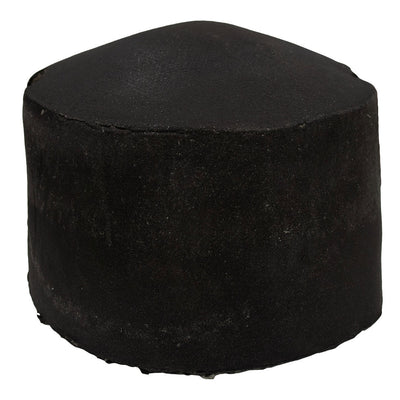

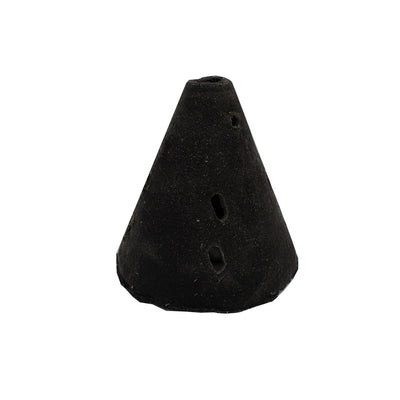

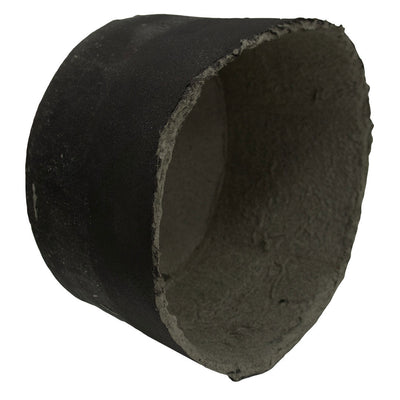

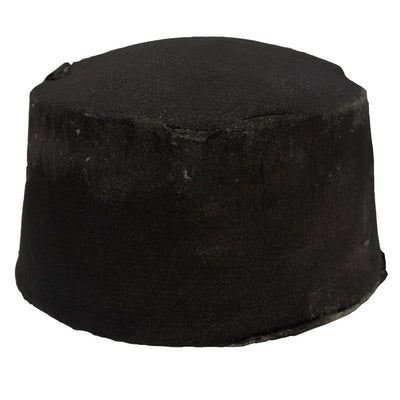

Astroflame Intumescent Downlight Cover
Astroflame Intumescent Downlight Cover
Ceilings are important fire barriers, but once a hole has been cut in them to allow the fitting of a downlight, their ability to stop the spread of fire is greatly reduced. Fitting an intumescent downlight cover (also called hood) restores the integrity of the ceiling. Upon contact with fire, the intumescent material in the downlight cover will expand and fill the available space with a highly fire-resistant foam. The cover will also stop fire should the downlight overheat and will prevent the contact of any flammable materials with the hot surfaces of the downlight.
- 60 minute fire rating
- Ventilated to prevent heat build-up from the downlight
- Prevents fire from penetrating the ceiling void
- Good acoustic insulation
- Self supporting
- Available in a range of sizes from small to xx-large
- Supplied singularly or in multipacks of four
- Tested to BS EN 1365-2:2000 and BS 476-23
Technical Data
| Product Code |
Small (Dia x H: 150x150mm), Single: AFDLCOVS Medium (Dia x H: 200x200mm), Single: AFDLCOVM X Large (Dia x H: 300x170mm), Single: AFDLCOVXL XX Large (Dia x H: 350x320mm), Single: AFDLCOVXXL Large (Dia x H: 250x250mm), Single: AFDLCOVL Small (Dia x H: 150x150mm), Multipack of 4: AFDLCOVS4 Medium (Dia x H: 200x200mm), Multipack of 4: AFDLCOVM4 X Large (Dia x H: 300x170mm), Multipack of 4: AFDLCOVXL4 XX Large (Dia x H: 350x320mm), Multipack of 4: AFDLCOVXXL4 Large (Dia x H: 250x250mm), Multipack of 4: AFDLCOVL4 |
|---|---|
| Brand | Astroflame |
| Downlight Cut-out Size |
XX Large: 140 - 270mm X Large: 140 - 270mm Large: 100 - 140mm Medium: 75 - 100mm Small: 50 - 75mm |
| Overall Dia x H |
XX Large: 350 x 230mm X Large: 300 x 170mm Large : 250 x 250mm Medium : 200 x 200mm Small: 150 x 150mm |
| Weight |
AFDLCOVS: 0.2kg AFDLCOVM: 0.25kg AFDLCOVXL: 0.35kg AFDLCOVXXL: 0.35kg AFDLCOVL: 0.3kg AFDLCOVS4: 0.8kg AFDLCOVM4: 1.0kg AFDLCOVXL4: kg AFDLCOVXXL4: 1.4kg AFDLCOVL4: 1.2kg |
