Astroflame Framevent PVCu Ventilators

Astro Framevent PVCu Ventilators

Quick Overview​

• Available in two sizes 300mm and 400mm.
• A smooth, rounded design.
• Snap on, quick fit ends.
• Positive open and close action.
• Integral flyscreen in external hood.
• Tested in accordance with BS EN 1026:2016 & BS EN 1027: 2016 Weather performance.
• Rod control available- for full compliance with Approved Document K 2013.
• Can be fitted to give updraught or down-draught.
• Sleeves available - for full compliance with BS7412: 2007 & BS EN 14351-1:2006.
• Joiner pieces available.

Manufactured in the highest quality U.V stabilised PVCu, the Framevent PVCu has been specifically designed for the volume market. Durable, easy to fit and fully tested, it is ideal for both timber and PVCu frames and its slim, elegant design makes it a popular choice. The Framevent represents the new generation of trickle vent window fittings. The Framevent PVCu 300mm units has an equivalent area as per BS 13141-1:2019 – 2328mm2 and the 400mm units has an equivalent area as per BS 13141-1:2019 – 3180mm2.

Fixing Instructions

• Route out the Frame with the correct slot size & configuration for the model to be fitted.
• Place unit centrally over the slots.
• Fix unit in place by using screws provided.
• Screw hole centres are 10mm in from each end (20mm off the overall length).

Performance

• Independently tested to BS EN 13141-1:2019.
• Water tightness of 400pa.
• Independently acoustically tested in accordance with BS EN 20140-10:1992, ISO 140-10:1991.

Maintenance

• The Framevent can be cleaned using a damp cloth. The external hood should be brushed lightly toremove dust from the flyscreen area.
• *Airflow rates quoted are for when fitted in accordance with manufacturer’s instructions. We recommend silicone sealing vents for best results*.

Product Information

Framevent PVCu 300

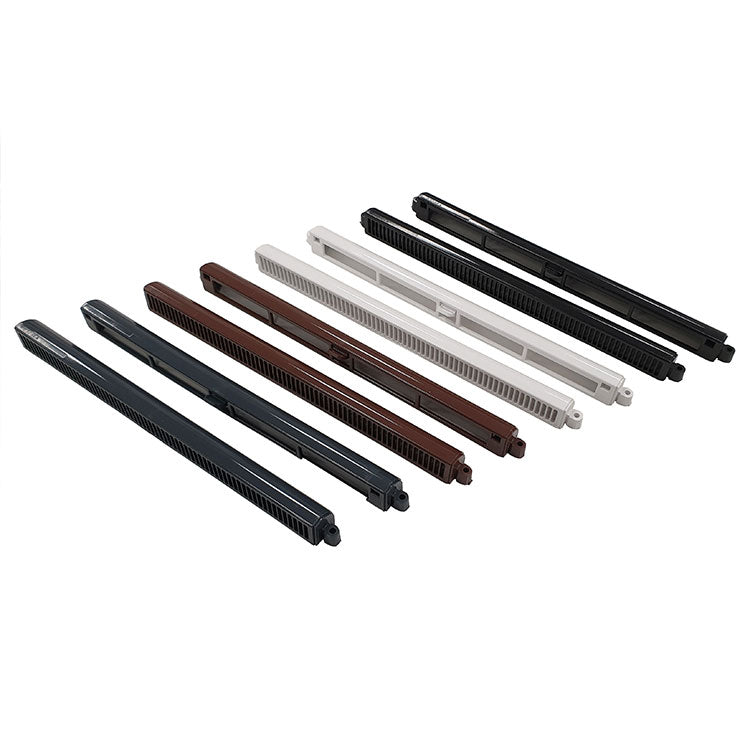

• Available in White, Brown, Black and Anthracite Grey measurement of Framevent PVCu seen below:
• 300mm Length x 22mm wide. Equivalent area as per BS 13141-1:2019 – 2328mm2.
• Slot Size – 260x13mm.

Framevent PVCu 400

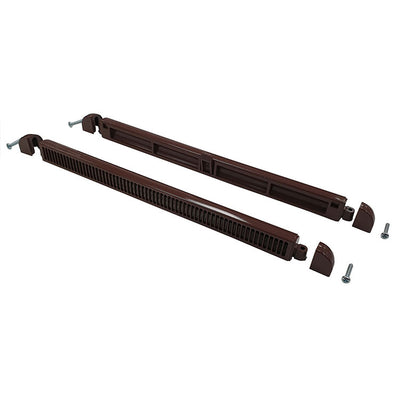

• Available in White, Brown, Black and Anthracite Grey measurement of Framevent PVCu seen below:
• 400mm Length x 22mm wide. Equivalent area as per BS 13141-1:2019 – 3180mm2.
• Slot Size – 365x13mm.
