Astroflame Flexiseal Intumescent Sheets for Door Ironmongery
Astro FlexiFire is a graphite-based intumescent material that offers high levels of expansion and insulation, preventing heat transfer on rebated hardware. All ironmongery installed on a fire door must be fitted without compromising the integrity of the complete fire door assembly. This is of particular importance where ironmongery is rebated into the doorset such as hinges, locks, latches.
As the material reaches its activation temperature of 180°, the intercalated graphite particles expand many times their original volume. Astro FlexiFire is an ultra thin and flexible high performance graphite based intumescent sheet. At 0.8mm Astro FlexiFire offers high levels of expansion and insulation preventing heat transfer on ironmongery rebated into timber doorsets.

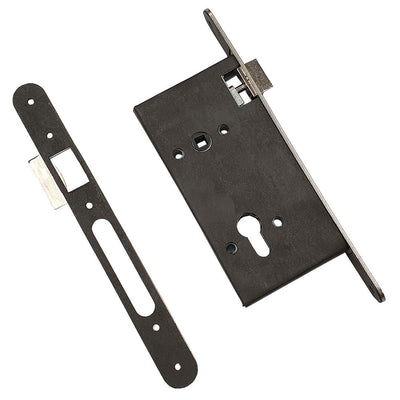

Flexible and fully customisable the Astro FlexiFire is suitable for use on all types of fire rated hardware. For instance on Door Hinges, Door Locks and Latches, Flush Bolts and Door Controls. Please check that your hardware test evidence is compatible with Astro FlexiFire prior to installation.
Ultra thin and flexible high performance intumescent sheet. At 0.8mm Astroflame Flexiseal offers high levels of expansion and insulation preventing heat transfer on ironmongery rebated into timber doorsets.
All ironmongery installed on a fire door must be fitted without compromising the integrity of the complete fire door assembly. This is of particular importance where ironmongery is rebated into the doorset such as hinges, locks, latches and concealed door closers.
- Suitable for both 30 and 60 minute applications
- Unaffected by moisture, humidity & atmospheric pollution
- Only 0.8mm thick - so minimal rebating required
- Very flexible and clean to work with
- Will bend without cracking
- Available with or without self adhesive backing
- Also available in 2mm thick on request
Hinges
| Product Code | Description | Fire Rating |
|---|---|---|

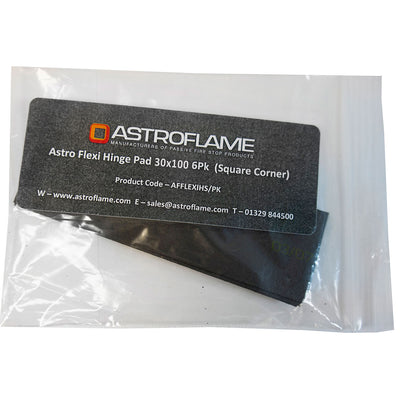

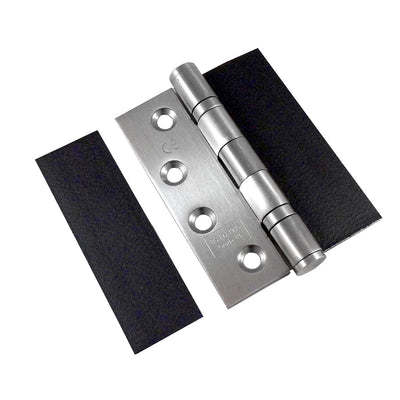

| AFFLEXIHSPK | Astro Flexiseal Hinge Pad 30x100 Pack of 6 |
30/60 |

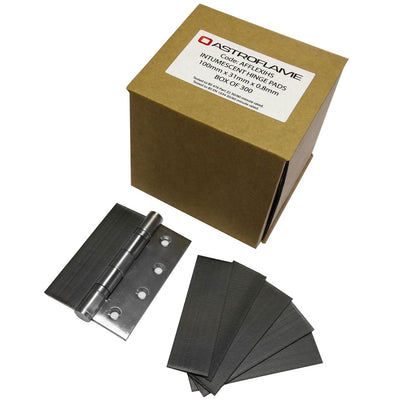

| AFFLEXIHS/300 | Astro Flexiseal Hinge Pad 30x100 (300 Pieces per box) |
30/60 |

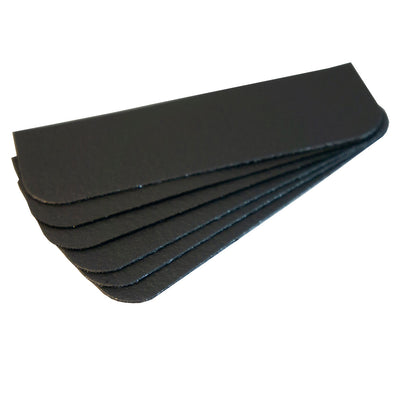

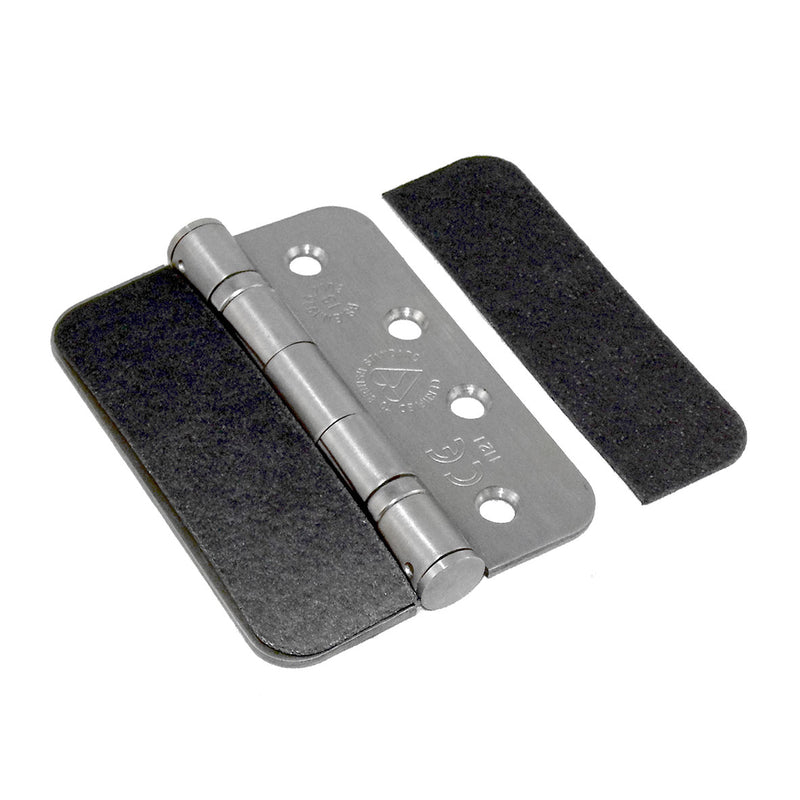

| AFFLEXIHSRPK | Astro Flexiseal Hinge Pad Radius 30x100 Pack of 6 | 30/60 |
| AFFLEXIHSR/300 | Astro Flexiseal Hinge Pad Radius 30x100 (300 Pieces per box) |
30/60 |
Hinges - Self Adhesive
| Product Code | Description | Fire Rating |
|---|---|---|
| AFFLEXIHSPK/SA | Astro Flexiseal Hinge Pad 30x100 Pack of 6 S/A |
30/60 |

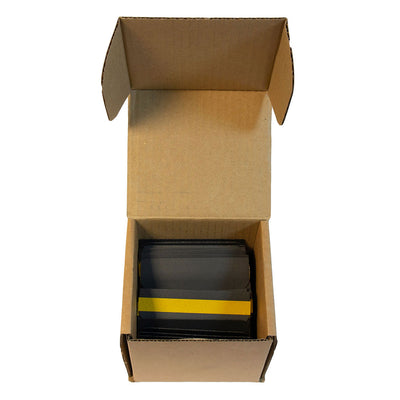

| AFFLEXIHS300/SA | Astro Flexiseal Hinge Pad 30x100 (300 Pieces per box) S/A |
30/60 |
| AFFLEXIHSRPK/SA | Astro Flexiseal Hinge Pad Radius 30x100 Pack of 6 S/A |
30/60 |
| AFFLEXIHSR300/SA | Astro Flexiseal Hinge Pad Radius 30x100 (300 Pieces per box) S/A |
30/60 |
Flush Bolt
| Product Code | Description | Fire Rating |
|---|---|---|
| AFFLEXIFBK | Astro Flexiseal Flush Bolt Kit - Self Adhesive 150/200mm To Suit Both Square & Radius Ends | 30/60 |
Sheet Material
| Product Code | Description | Fire Rating |
|---|---|---|

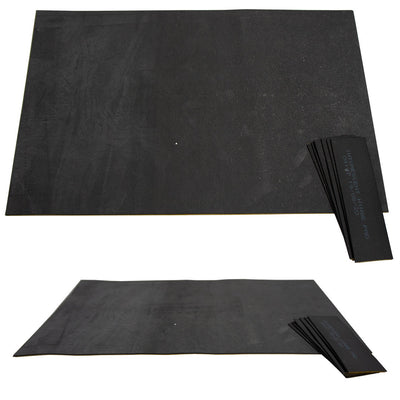

| AFFLEXISH200 | Astro Flexiseal Intumescent Sheet 200x200mm | 30/60 |
| AFFLEXISH300 | Astro Flexiseal Intumescent Sheet 300x200mm | 30/60 |
Sheet Material - Self Adhesive
| Product Code | Description | Fire Rating |
|---|---|---|

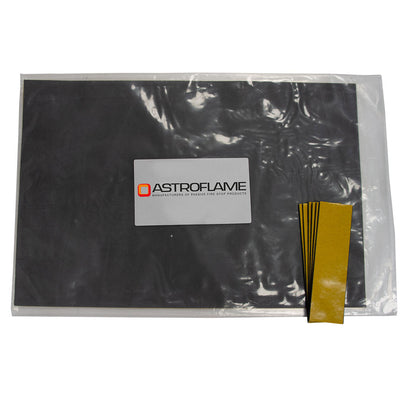

| AFFLEXISH200/SA | Astro Flexiseal Intumescent Sheet 200x200mm - Self Adhesive |
30/60 |
| AFFLEXISH300/SA | Astro Flexiseal Intumescent Sheet 300x200mm - Self Adhesive |
30/60 |
