Astroflame Automatic Acoustic & Smoke Door Bottom Seals
Astroflame Automatic Acoustic & Smoke Rated Door Bottom Seals
- RP8Si - A hot smoke automatic door bottom seal, with an extruded silicon sealing component, that conforms to the 200°C requirement of BCA c3.4
- RP38Si - A heavy duty, automatic door bottom seal that is spring loaded to lift clear of the floor when the door is opened
- RP70Si - Fully mortised version of the RP38Si door seal, spring loaded to lift clear of the floor as soon as the door leaf is opened by a few millimetres
- RP99Si - A heavy duty automatic door bottom seal which is spring loaded to lift clear of the floor as soon as the door leaf is opened by a few millimetres.
- RP129Si - A silicon rubber seal in a 15 micron anodised Aluminium carrier
Astroflame Automatic Acoustic & Smoke Rated Door Bottom Seals help combat draughts, dust, rain, noise, heat loss, heat gain, fire, smoke and stray light. Designed for areas with a high level of use such as public places such as hospitals, airports, factories, shopping centres or areas with a large flow through of pedestrian and wheeled traffic.

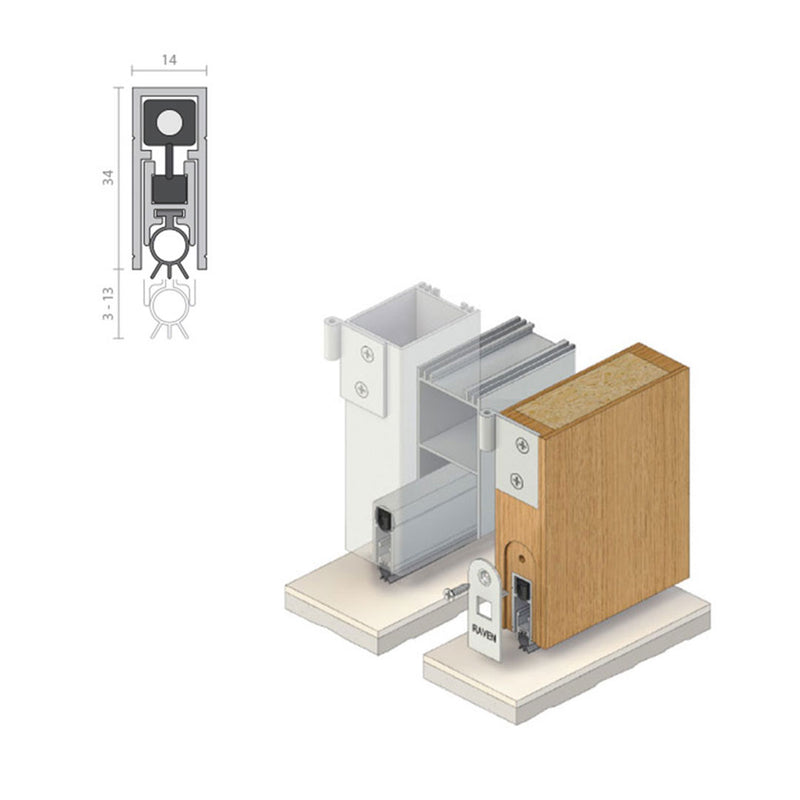

RP8Si
- A hot smoke automatic door bottom seal, with an extruded silicon sealing component, that conforms to the 200°C requirement of BCA c3.4
- RP8Si is spring loaded to lift clear of the floor as soon as the door leaf is opened by a few millimetres.
- Mounted into a 15mm x 34mm groove that has been mortised into the bottom edge of the door, it is operated automatically by pressure against the door jamb on its adjusting screw.
- RP8Si has been tested for durability 1,000,000 cycles completed without failure.
Location
Single and double, butt hinged doors.
Min/Max Gap 3mm/13mm.
Fixing Method
Concealed, with supporting colour matched stainless steel escutcheon plates.
Screws supplied
| Product Code | Description | Size | Lengths | Colour |
|---|---|---|---|---|
| ADRP8SI/380 | Raven RP8Si | 14 x 34 x 13mm | 380mm | Anodised Satin Clear |
| ADRP8SI/600 | Raven RP8Si | 14 x 34 x 13mm | 600mm | Anodised Satin Clear |
| ADRP8SI/826 | Raven RP8Si | 14 x 34 x 13mm | 826mm | Anodised Satin Clear |
| ADRP8SI/926 | Raven RP8Si | 14 x 34 x 13mm | 926mm | Anodised Satin Clear |
| ADRP8SI/1070 | Raven RP8Si | 14 x 34 x 13mm | 1070mm | Anodised Satin Clear |
| ADRP8SI/1220 | Raven RP8Si | 14 x 34 x 13mm | 1220mm | Anodised Satin Clear |

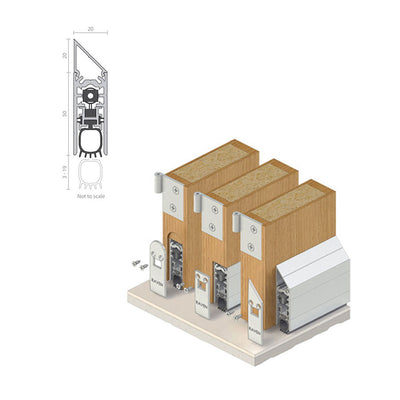

RP38Si
- A heavy duty, automatic door bottom seal that is spring loaded to lift clear of the floor when the door is opened.
- It is self levelling and reversible for left and right handed operation.
- Acoustically designed, it features a silicon gasket for medium temperature smoke and fire door applications.
- Doubles as a kick plate when semi-morticed.
- Operated automatically by pressure against the door jamb or stop on its adjustable brass strike.
Location
Face mounted or semi-morticed into bottom of single and double butt hinged doors.
Min/Max Gap 3mm to 13mm.
Fixing Method
Screw fix. Colour matched escutcheon plates and zinc plated, cross recess head S.T. screws supplied.
| Product Code | Description | Size | Lengths | Colour |
|---|---|---|---|---|
| ADRP38SI/450 | Raven RP38Si | 3-13 x 70 x 3 x 23 x 44mm | 450mm | Anodised Satin Clear |
| ADRP38SI/610 | Raven RP38Si | 3-13 x 70 x 3 x 23 x 44mm | 610mm | Anodised Satin Clear |
| ADRP38SI/920 | Raven RP38Si | 3-13 x 70 x 3 x 23 x 44mm | 920mm | Anodised Satin Clear |
| ADRP38SI/1070 | Raven RP38Si | 3-13 x 70 x 3 x 23 x 44mm | 1070mm | Anodised Satin Clear |
| ADRP38SI/1220 | Raven RP38Si | 3-13 x 70 x 3 x 23 x 44mm | 1220mm | Anodised Satin Clear |
| ADRP38SI/1500 | Raven RP38Si | 3-13 x 70 x 3 x 23 x 44mm | 1500mm | Anodised Satin Clear |

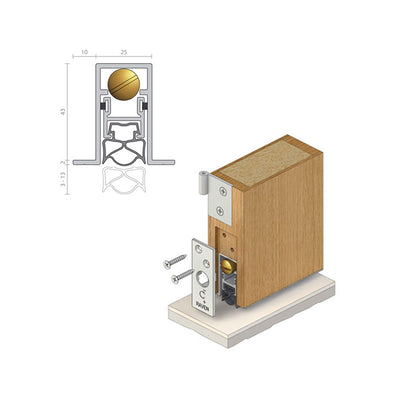

RP70Si
- The RP70Si automatic seal is the fully mortised version of the RP38Si door seal. It is a heavy duty door bottom seal which is spring loaded to lift clear of the floor as soon as the door leaf is opened by a few millimetres.
- The seal is operated automatically by pressure against the door jamb on the adjusting screw. It seals when the door closes and retracts automatically when door is opened. It is self leveling.
- When using RP70si door bottom seal, the door must be a minimum of 45mm thick and of suitable construction for mortising this seal. It is reversible for left or right handed operation.
- Note: For double doors, plain meeting stiles are required.
- RP70Si has been tested for durability ~ 1,000,000 cycles completed without failure.
Location
Single or double, butt hinged doors., minimum thickness 45mm.
Min/Max Gap up to 13mm.
Fixing Method
Fully mortised, can be adjusted, escutcheon plates provided.
| Product Code | Description | Size | Lengths | Colour |
|---|---|---|---|---|
| ADRP70SI/450 | Raven RP70Si | 3-13 x 43 x 10 x 25mm | 450mm | Anodised Satin Clear |
| ADRP70SI/610 | Raven RP70Si | 3-13 x 43 x 10 x 25mm | 610mm | Anodised Satin Clear |
| ADRP70SI/920 | Raven RP70Si | 3-13 x 43 x 10 x 25mm | 920mm | Anodised Satin Clear |
| ADRP70SI/1070 | Raven RP70Si | 3-13 x 43 x 10 x 25mm | 1070mm | Anodised Satin Clear |
| ADRP70SI/1220 | Raven RP70Si | 3-13 x 43 x 10 x 25mm | 1220mm | Anodised Satin Clear |
| ADRP70SI/1500 | Raven RP70Si | 3-13 x 43 x 10 x 25mm | 1500mm | Anodised Satin Clear |
RP99Si
- Raven RP99Si is a heavy duty automatic door bottom seal which is spring loaded to lift clear of the floor as soon as the door leaf is opened by a few millimetres. An acoustically designed seal for face mounted, semi mortised or fully mortised applications. It is operated automatically by pressure against the door jamb on its adjustment block. RP99Si seals when the door closes and retracts automatically when the door is opened.
- RP99Si has been tested for durability, 1,000,000 cycles completed without failure.
- RP99Si conforms to the 200 degrees Celsius requirement of BCA c3.4 spec, for fire rated & medium smoke doors. All fitting options have been tested and approved on proprietary fire doors to 120 minutes AS1530.4 and AS/NZS2905.1.
Location
Solid core single and double broad butt hinged doors. Face fix, fully and semi mortised applications. Minimum door thickness 40mm recommended.
Min/Max Gap 1mm/19mm.
Fixing Method
Zinc plated, cross recess head S.T. screws of the appropriate size are supplied. Colour matched escutcheon plates included.
| Product Code | Description | Size | Lengths | Colour |
|---|---|---|---|---|
| ADRP99SI/380 | Raven RP99Si | 3-19 x 50 x 20 x 20mm | 380mm | Anodised Satin Clear |
| ADRP99SI/600 | Raven RP99Si | 3-19 x 50 x 20 x 20mm | 600mm | Anodised Satin Clear |
| ADRP99SI/720 | Raven RP99Si | 3-19 x 50 x 20 x 20mm | 720mm< | Anodised Satin Clear |
| ADRP99SI/820 | Raven RP99Si | 3-19 x 50 x 20 x 20mm | 820mm | Anodised Satin Clear |
| ADRP99SI/920 | Raven RP99Si | 3-19 x 50 x 20 x 20mm | 920mm | Anodised Satin Clear |
| ADRP99SI/1070 | Raven RP99Si | 3-19 x 50 x 20 x 20mm | 1070mm | Anodised Satin Clear |
| ADRP99SI/1200 | Raven RP99Si | 3-19 x 50 x 20 x 20mm | 1200mm | Anodised Satin Clear |
RP129Si
- A silicon rubber seal in a 15 micron anodised Aluminium carrier.
- Seal carrier is pre-drilled with fixing slots at regular intervals and matching screws are supplied.
- The seal can be checked out or drilled to accommodate the pivot, thereby providing a continuous seal.
- Durability Tested to over 1,000,000 operating cycles without failure.
- Full installation instructions are included with the product.
Location
Double butt hinged and centre pivot double acting doors.
Min/Max Gap
14mm to 18mm.
Fixing Method
Zinc plated, cross recess S.T. screws of the appropriate size and colour are supplied.
| Product Code | Description | Size | Lengths | Colour |
|---|---|---|---|---|
| ADRP129SI/1250 | Raven RP129Si | 18 x 38mm | 1250mm | Anodised Satin Clear |
