Astroflame Acoustic Smoke & Perimeter Seals
Astroflame Acoustic Smoke & Perimeter Seals
- RP120 & RP150 - A co-extruded PVC, acoustic & smoke seal. Discreetly located in the protected corners of rebated timber or steel door frames
- RP10Si - Neat & compact, proven to be an effective acoustic seal when tested in accordance with BS2750 & ISO140.3
- RP24Si - Adjustable for noise, light & smoke
- RP47Si - Heavy duty, designed to replace the conventional door stop, around the head & jambs of the door frame
- RP78Si - Medium temperature smoke door frame seal that has been tested to AS 1530.4, AS/NZS 1905. 1 & conforms to BCA spec. C3.4. 200°C Medium temperature smoke. Equivalent to BS 476 part 20 & 22
- RP84Si - Designed specifically for 'clean room' applications
- RP93Si - Weather & acoustic for plain or rebated frames
- RP94Si - Weather & acoustic for rebated frames
Astroflame Acoustic Smoke & Perimeter Seals include medium-duty seals used in commercial applications such as office spaces, shops, commercial accommodation or medium trafficked areas, and heavy-duty seals designed for areas with a high level of use such as public places such as hospitals, airports, factories, shopping centres or areas with a large flow through of pedestrian and wheeled traffic.

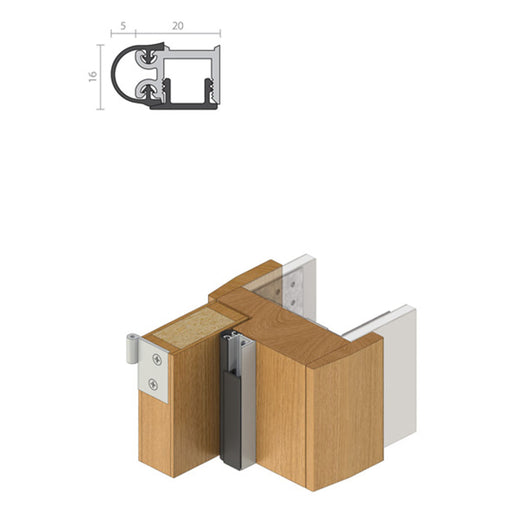

RP10Si
- A neat compact door stop frame seal which has proven to be an effective acoustic seal when tested in accordance with BS2750 and ISO140.3.
- It is quick and easy to install onto the door frame as a door stop. It is adjustable, by concealed fixing slots, for a precision fit.
- The multi blade seal considerably reduces the leakage of noise and air movement. The minimum deflection of the sealing fins creates maximum efficiency, offering a large tolerance for door movement over time. The seal can be mitred or butt jointed to give an integrated aesthetic appearance.
- Note: If fixing to rebated frames of single doors, specify a long backset door latch.
Head and jambs of single or double broad butt hinged doors.
Min/Max Gap 0mm/10mm.
Fixing Method
Zinc plated, cross recess head S.T. screws of the appropriate size are supplied, Fixing holes are pre drilled and are slotted to allow the seals to be fitted accurately and to allow adjustments to be made for building movement.
| Product Code | Description | Size | Colour |
|---|---|---|---|
| ADRP10SI/SD | Raven RP10Si single door set | 8 x 20 x 16mm | Anodised Satin Clear |
| ADRP10SI/DD | Raven RP10Si double door set | 8 x 20 x 16mm | Anodised Satin Clear |

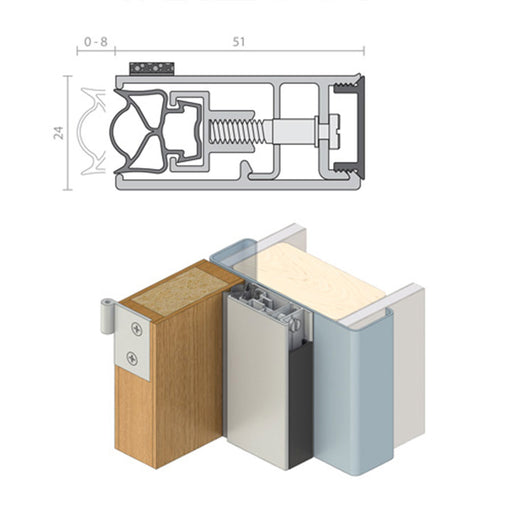

RP24Si
- An adjustable door stop seal for noise, light and smoke. The RP24 seal uses independently adjustable fasteners to achieve up to 8mm sealing adjustment for maximum noise control.
- The seal can be butt jointed at the corners to produce an easily installed continuous seal around the door frame. Its aluminium carrier is sturdy and slotted for adjustment with concealed fixings. It is quick and easy to install around the jamb and head and can be fitted without removing the door.
- It is tamper proof with fully concealed fasteners to give the seal an aesthetic appearance. The closed cell S.E. Sponge E.P.D.M. seal requires only normal door closing force. If fixing to rebated frames of single doors, specify a long backset door latch. RP24 has been granted an Australian Design Award.
- It is an effective acoustic seal when tested in accordance with BS2750, it meets smoke leakage requirements of BS5588 Pt 1 when tested in accordance with BS476 pT31.1 and has been fire tested in accordance with BS476 Pt22 for half an hour.
Location
Head and jamb of single or double broad butt hinged doors.
Min/Max Gap 0mm/8mm.
Fixing Method
Zinc plated cross recess head S.T. screws of the appropriate size are supplied.
| Product Code | Description | Size | Colour |
|---|---|---|---|
| ADRP24SI/SD | Raven RP24Si single door set | 0-8 x 51 x 24mm | Anodised Satin Clear |
| ADRP24SI/DD | Raven RP24Si double door set | 0-8 x 51 x 24mm | Anodised Satin Clear |

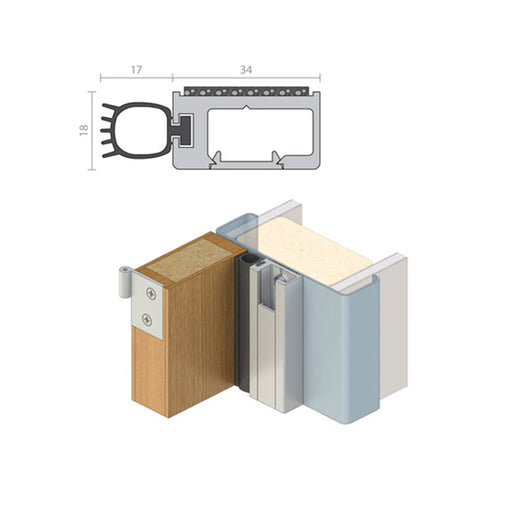

RP47Si
- A heavy duty door seal which has been designed to replace the conventional door stop, around the head and jambs of the door frame. Its proven excellent acoustic qualities make it particularly suitable in heavy traffic areas that sustain high abuse, such as hospitals, hotels, airports and prisons
- Concealed behind an aluminium cover strip can be found a space for low voltage cable management, along with adjustable fastener slots for achieving perfect fitment. The extrusions of this rugged tamper proof seal can be mitred or butt jointed for ease of installation.
- RP47 has been tested acoustically to BS2750 / ISO140 and meets smoke leakage performance of BS5588
- Note: If fixed to existing rebated frames of single doors, specify a long backset door latch
Location
Head and jambs of single or double broad butt hinged doors or bulk head applications.
Min/Max Gap 0mm/17mm.
Fixing Method
Zinc plated, Tek self drilling (metal) of the appropriate size are supplied.
| Product Code | Description | Size | Colour |
|---|---|---|---|
| ADRP47SI/SD | Raven RP47Si single door set | 17 x 34 x 18mm | Anodised Satin Clear |
| ADRP47SI/DD | Raven RP47Si double door set | 17 x 34 x 18mm | Anodised Satin Clear |
RP78Si
- A medium temperature smoke door frame seal that has been tested to AS 1530.4, AS/NZS 1905. 1 and conforms to BCA spec. C3.4. 200°C Medium temperature smoke. Equivalent to BS 476 part 20 and 22.
- It is an acoustically designed smoke seal for installation on door stops and it can be mitred or butt jointed.
- Its aluminium carrier is sturdy and slotted for adjustment with concealed fixings. It is quick and easy to install around the jamb and head and can be fitted without removing the door.
Location
Head and jambs on single or double butt hinged doors.
Min/Max Gap
0mm to 6mm
Fixing Method
Zinc plated, cross recess head S.T. screws of the appropriate size are supplied.
| Product Code | Description | Size | Colour |
|---|---|---|---|
| ADRP78SI/SD | Raven RP78Si single door set | 7 x 8 x 16 x 6mm | Anodised Satin Clear |
| ADRP78SI/DD | Raven RP78Si double door set | 7 x 8 x 16 x 6mm | Anodised Satin Clear |

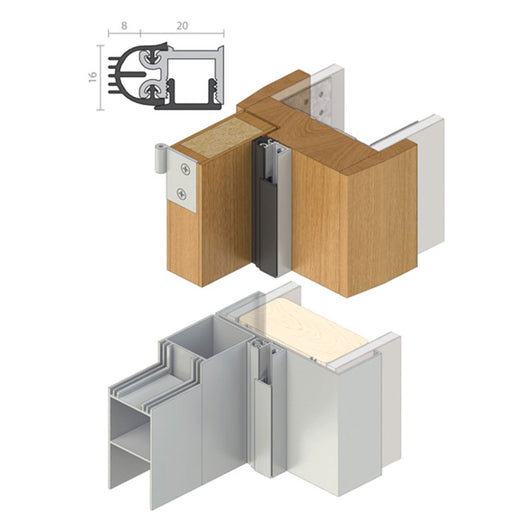

RP84Si
- Designed specifically for 'clean room' applications.
- Its easy cleaning aluminium extrusion and flexible smooth silicon sealing section considerably reduces sound transmission and prevents movement of air borne contaminates, thus allowing for controlled air ventilation.
Location
Head and jambs for single and double broad butt hinged doors.
Min/Max Gap 0mm to 7mm
Fixing Method
Zinc plated, cross recess head S.T. screws of the appropriate size are supplied.
| Product Code | Description | Size | Colour |
|---|---|---|---|
| ADRP84SI/SD | Raven RP84Si single door set | 16 x 5 x 20mm | Anodised Satin Clear |
| ADRP84SI/DD | Raven RP84Si double door set | 16 x 5 x 20mm | Anodised Satin Clear |

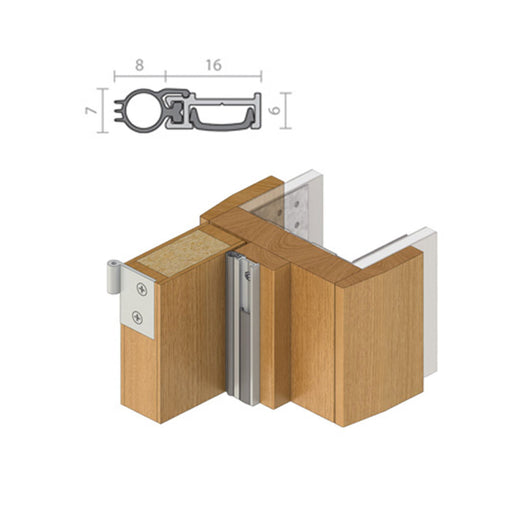

RP93Si
- A weather and acoustic seal suitable for plain or rebated frames.
- RP93Si is quick and easy to install (mitre joint only), to the head and jambs without removing the door. Slotted for installation adjustment, the soft silicon bulb accommodates a tighter seal and, with a tamper proof cover strip, provides a fit and forget feature.
-
Note:
If fixing to rebated frames of single doors specify a long backset door latch. The tamper proof aluminium cover strip is not recommended for removal once installed, refer RP78Si or RP10Si for this feature.
Location
Head and jambs of single or double broad butt hinged doors.
Min/Max Gap 0mm/ 6mm.
Fixing Method
Zinc plated, cross recess head S.T. screws of the appropriate size are supplied.
| Product Code | Description | Size | Colour |
|---|---|---|---|
| ADRP93SI/SD | Raven RP93Si single door set | 6 x 24 x 6mm | Anodised Satin Clear |
| ADRP93SI/DD | Raven RP93Si double door set | 6 x 24 x 6mm | Anodised Satin Clear |

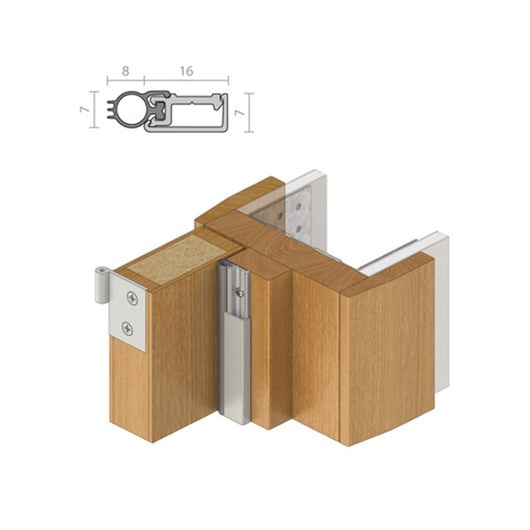

RP94Si
- A weather and acoustic seal suitable for rebated frames.
- RP94Si is quick and easy to install, either mitred or butt jointed to the head and jambs without removing the door. Slotted for installation adjustment, the soft silicon bulb accommodates a tighter seal and with a tamper proof cover strip, provides a fit and forget feature.
-
Note:
The tamper proof aluminium cover strip is not recommended for removal once installed , refer RP78Si for this feature.
Location
Head and jambs of single or double broad butt hinged doors.
Min/Max Gap 0mm/ 6mm.
Fixing Method
Zinc plated, cross recess head S.T. screws or the appropriate size are supplied.
| Product Code | Description | Size | Colour |
|---|---|---|---|
| ADRP94SI/SD | Raven RP94Si single door set | 7 x 8 x 16mm | Anodised Satin Clear |
| ADRP94SI/DD | Raven RP94Si double door set | 7 x 8 x 16mm | Anodised Satin Clear |

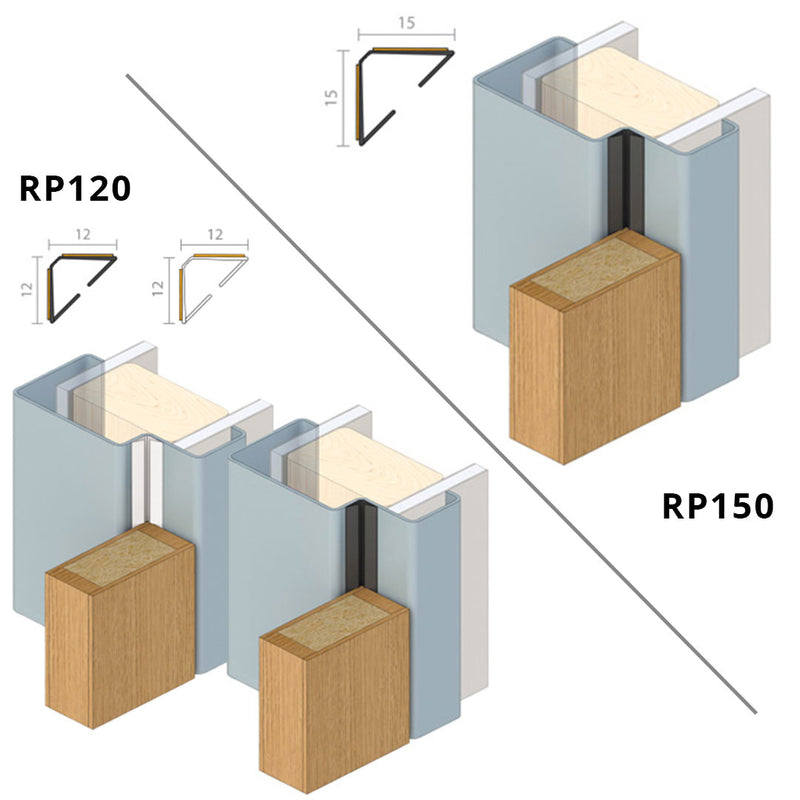

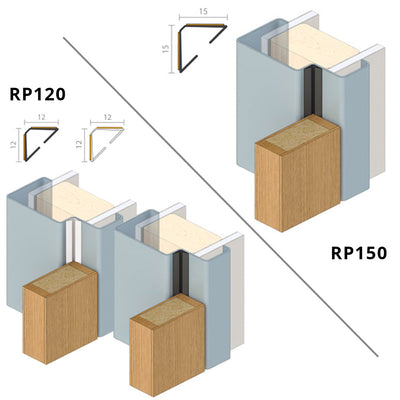

RP120 & RP150
- A co-extruded PVC, acoustic and smoke seal. Discreetly located in the protected corners of rebated timber or steel door frames.
- RP120 & RP150 have been tested to AS/NZS1530.4 on proprietary fire doors and conforms to BCA spec. C3.4 200C Medium temperature (smoke doors), equivalent to BS476 part 20 and 22.
- Suitable for new and retrofit applications.
Around rebated frames of single or double broad butt hinged doors and windows.
Min / Max Gap 3mm to 5.5mm
Seal Material
Rigid and Flexible flame retardant PVC, with an aggressive self adhesive backing tape on both sides of the rigid carrier.
Used in Conjunction
Raven door bottom seals, threshold plates and astragal seals.
| Product Code | Description | Size | Colour |
|---|---|---|---|
| ADRP120BLK | Raven RP120 | 12 x 12mm | Black |
| ADRP120BLK/SD | Raven RP120 single door set | 12 x 12mm | Black |
| ADRP120BLK/DD | Raven RP120 double door set | 12 x 12mm | Black |
| ADRP150BLK | Raven RP150 | 15 x 15mm | Black |
| ADRP150BLK/SD | Raven RP150 single door set | 15 x 15mm | Black |
| ADRP150BLK/DD | Raven RP150 double door set | 15 x 15mm | Black |
Astroflame Acoustic Smoke & Perimeter Seals
