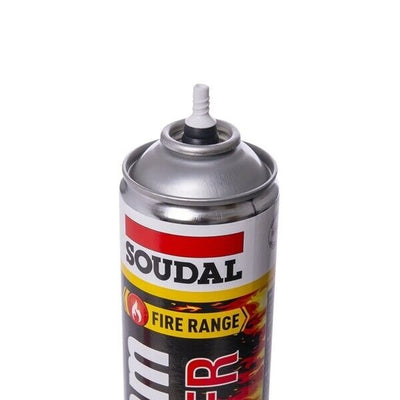

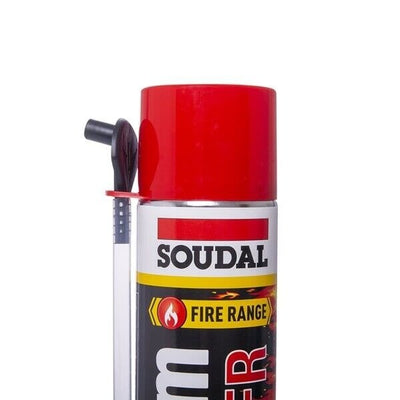

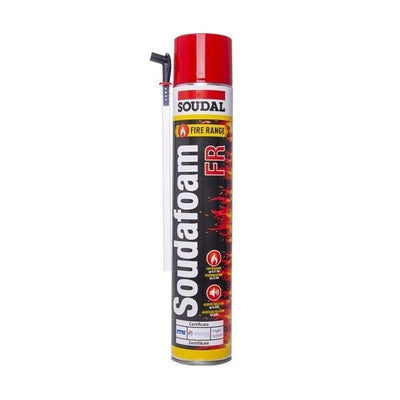

Astroflame 750ml Soudal Fire Rated Expanding Foam (12 x Canister) - AFFRECFOAM
Astroflame 750ml Soudal Fire Rated Expanding Foam (12 x Canister) - AFFRECFOAM
Key Points:
- Ready to use PU foam in a 750ml can.
- Fire resistant in a joint (EN 1366-4) for 240 minutes.
- High filling capacity.
- Good adhesion on all surfaces (except PE, PP and PTFE).
- High insulation value, thermal and acoustic.
- Very good bonding properties.
- Not UV-resistant.
- 15 months unopened and stored in dry and cool conditions (Between 5 and 25 °C), Upright storage is recommended.
Description:
Soudal Fire Rated Expanding Foam is a one-component, self-expanding, ready to use polyurethane foam, which contains HCFC- and CFC-free propellants which are not harmful for the ozon layer and where the canister is provided with a thread so it can be used on a gun. Soudal Fire Rated Expanding Foam is a PU-foam with fire retardant characteristics according to the European standard EN 1366-4. Because of the Duravalve, the optimal yield remains over the entire shelf life, even when stored or transported lying down.
Technical data:
| Basis | Polyurethane |
| Consistency | Stable foam, thixotropic |
| Curing system | Moisture-cure |
| Skin Formation (EN 17333-3) | 6,5 min |
| Cutting Time (EN 17333-3) | 20 min |
| Density | Ca. 19 kg/m3 |
| Sound insulation (EN ISO 717-1) | 62 dB |
| Thermal conductivity () (EN 12667) | 0,036 W/m.K |
| Box Yield (EN 17333-1) | 750 ml yields ca. 44 l of foam |
| Joint Yield (FEICA TM 1002) | 750 ml yields ca. 17 m of foam |
| Joint Yield (EN 17333-1) | 750 ml yields ca. 35 m of foam |
| Shrinkage after curing (EN 17333-2) | < 2 % |
| Expansion after curing (EN 17333-2) | < 2 % |
| Compressive strength (EN 17333-4) | Ca. 30 kPa |
| Compressive strength (FEICA TM 1011) | Ca. 104 kPa |
| Shear strength (EN 17333-4) | Ca. 48 kPa |
| Tensile Strength (EN 17333-4) | Ca. 93 kPa |
| Elongation at Fmax (EN 17333-4) | Ca. 11,5 % |
| Temperature resistance** | -40 °C till +90 °C (cured) |
** This information relates to fully cured product.
Specification:

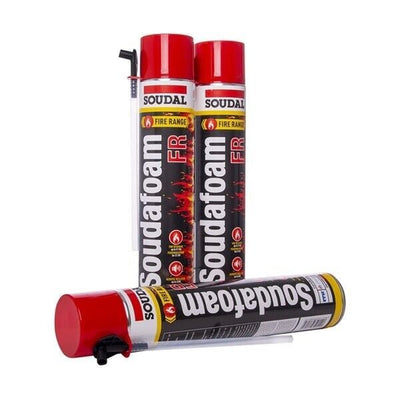

- Sold as a box 12 x 750ml canisters.
- Colour: Pink.
Application:
- Installation of fireproof doors and windows.
- Sealing of fire retardant joints in walls and ceiling.
- As part of the Soudal Fire Range assortment for penetration seals and joints.
- Sealing of all openings in roof constructions.
- Apply of an acoustic baffle.
- All foam applications in static joints.
Application method:
Shake the aerosol can for at least 20 seconds. Fit the gun on the adapter. Surface should be free from grease and dust. Moisten surfaces with a water sprayer prior to application. For non-conventional substrates a preliminary adhesion test is recommended. Fill holes and cavities for 65 %, as the foam will expand. Repeat shaking regularly during application. If you have to work in layers repeat moistening after each layer. Fresh foam can be removed using Soudal Gun & Foamcleaner or acetone. Prior to using the Gun & Foamcleaner, test whether surfaces are affected or not. Especially plastics and lacquer or paint layers can be sensitive to this. Cured foam can only be removed mechanically or with Soudal PU Remover.
Can temperature: +5 °C - 30 °C
Ambient temperature: +5 °C - 30 °C.
Surface temperature: +5 °C - 35 °C
