ASTROFLAME 60 X 600 X 1200 MM FIRE RESISTANT BOARDS - AFPFPB60
ASTROFLAME 60 X 600 X 1200 MM FIRE RESISTANT BOARDS - AFPFPB60

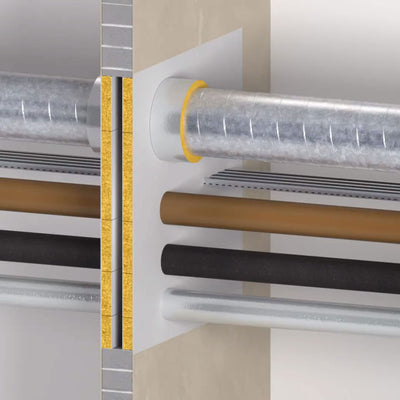

The Astro PFP FR Board is designed to prevent the spread of fire and smoke through openings in fire rated walls and floors where openings are formed to allow the installation of multiple building services. It will also maintain the acoustic design performance in fire rated walls and floors.

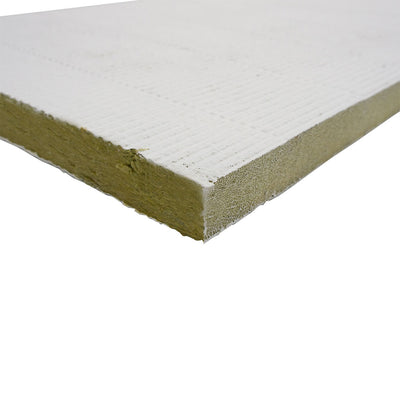

The Astro PFP FR Board consists of a high density stone wool core, over-coated with Astro PFP FR Coating. The top coating provides additional protection by significantly reducing the permeability of the stone wool core and preventing the passage of hot gases, thus reducing the temperature rise on the unexposed side and reducing heat conduction through the building services.

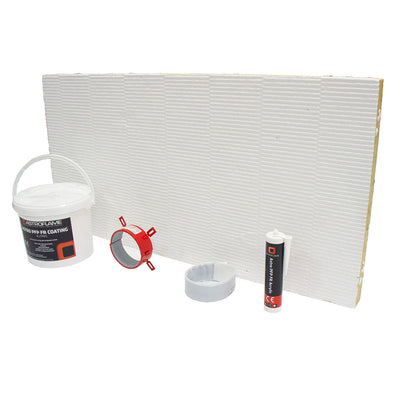

Astro PFP FR Board is available coated on one or two sides, depending on the seal design to provide the required fire resistance. On site, Astro PFP FR Board must be used together with Astro PFP Acrylic for sealing around building services, joints and edges of the FR Board and the surrounding construction.
Sound Insulation
| Description | Sound Reduction |
| Single 50 or 60mm Astro PFP FR Board 2-S as linear seal | Rw 55 dB |
| Single 50 or 60mm Astro PFP FR Board 2-S as large seal | Rw 29 dB |
| Double 50 or 60mm Astro PFP FR Board 1-S or 2-S as large seal | Rw 52 dB |
| 50 or 60mm Astro PFP FR Board 1-S or 2-S with 50mm cavity, large seal | Rw 53 dB |
Astro PFP FR Board has been tested at BM Trada (UKAS accredited); according to EN ISO 10140-2:2010.
Technical Data
| Condition | Ready for use, pre-coated boards |
| Density | Board: 160 kg/m3 (150 - 170 kg/m3) Coating: 1.3 - 1.4 kg/ltr |
| Durability | Y1 - Intended for use at temperatures below 0°C with exposure to UV and humidity but no exposure to rain. Includes lower classes Y2, Z1 and Z2. |
| Non-sticky | Max. 75 minutes (sealant) |
| Film forming | Max. 25 minutes (sealant) |
| Totally hardened | 3 to 5 days depending on thickness and temperature |
| Flexibility | Medium, 12.5% |
| Thermal conduct. | 0.038 W/mK |
| Storage | May be stored for a long period of time. To be stored in temperatures between 5°C and 30°C |
| Limitations | If the boards are to be used in permanently humid areas PFP FR Coating should be applied over the sealant |
| Temperature range | -30°C to +80°C (when hardened) |
| Installation temp. | +5°C to +50°C |
| Colour | White surface, green core PFP FR Acrylic: White: RAL 9002 |
