Astro X Series CE Pipe Collar Intumescent CE & UKCA Marked

Astro X Series CE Intumescent Pipe Collar

Quick Overview

• CE & UKCA Marked.
• UL-EU Accreditation.
• Tested in accordance with EN 1366-3 : 2009.
• Pipe Collar size range 32mm to 250mm, please refer to the test certification.
• Compatible with PP, PE, PVC-U, ABS, SAN+PVC pipes, please refer to the test certification.
• 3 Fixing Tabs.
• End Capping – Uncapped U/U and Capped U/C & C/U pipes, please refer to the test certification.
• New Design with reduced height for tight installations.
• For internal use.

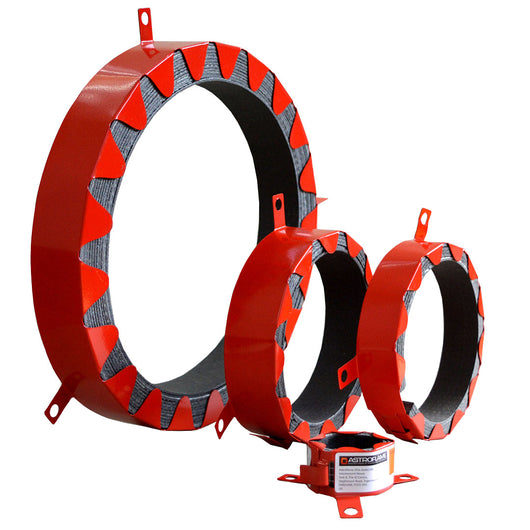

Astro X Series CE Pipe Collars are designed and tested to seal service penetration apertures containing plastic pipes, using thermoplastic composites based on graphite intumescent technology.

Developed to provide a high volume expansion and pressure seal during a fire. The X Series CE Collar offers EI120 and EI240 tested in accordance with EN1366-3 : 2009, the maximum diameter being 250mm, the ultra thin design of Astro X Series Collar shell gives a depth of 30mm and 40mm ensuring that they can be installed into the tightest of locations.

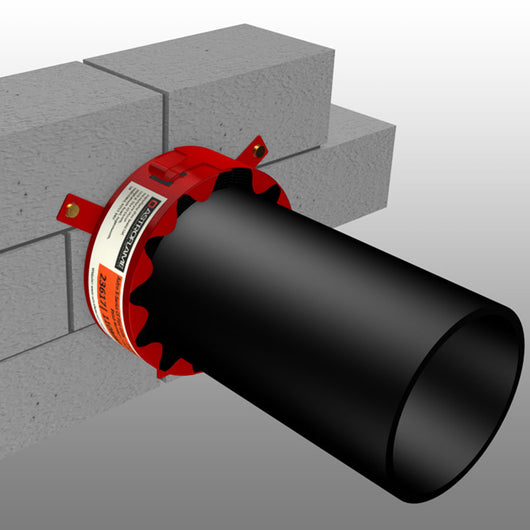

Astro X Series Pipe Collar can be installed on flexible or rigid wall and rigid floor constructions. It can also be used with Astro Batt systems.

They are compatible with polypropylene (pp),polyethylene (PE) and Polyvinylchoride (PVC) pipes. X Series Collar is tested with end capping configurations that cover U/U, C/U, U/C and C/C pipes.

Astro X Series CE Pipe Collar is used around combustible pipes to form a penetration seal used to reinstate the fire resistance performance of wall and floor constructions, where they have been provided with apertures for the penetration of combustible pipe services.

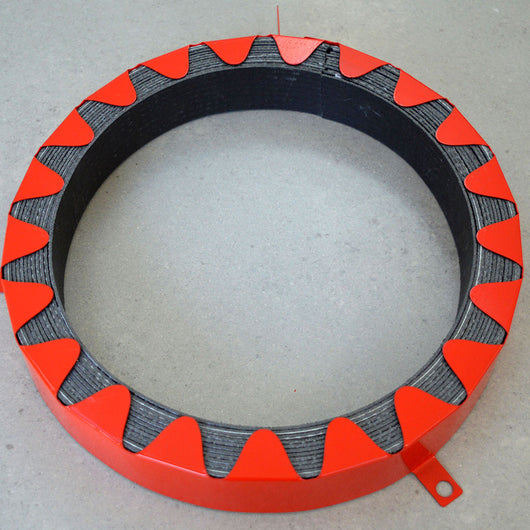

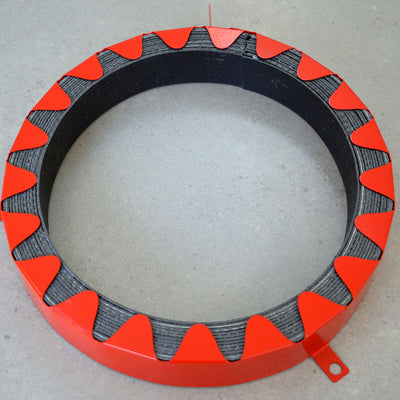

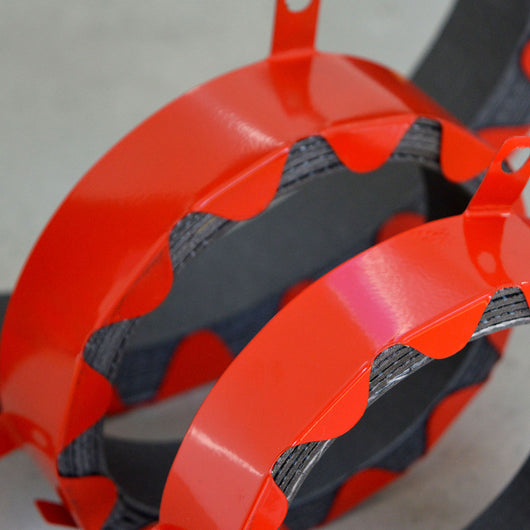

Astro X Series CE Pipe Collar include an intumescent component incorporated into a mild steel case to close any gaps and joints and provide a closure of combusting pipes when heated and to prevent the passage of fire.

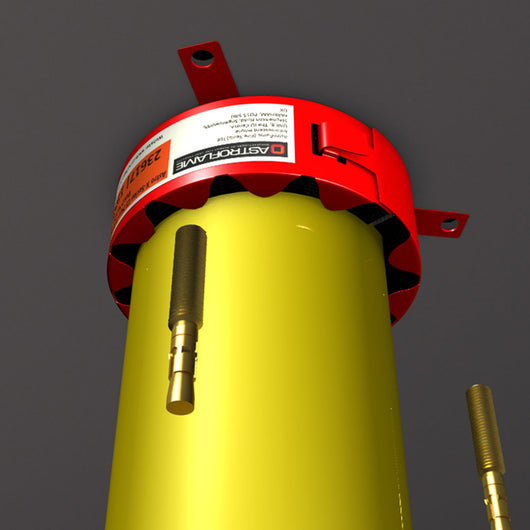

Astro X Series CE Pipe Collars are supplied in assembled form, without fixings. The collar is wrapped around the pipe at the soffit or both faces of walls, depending on application.

*For specific details please refer to the test certification.

Product Availability

The Astro X Series CE Pipe Collar range is available in standard sizes, to suit 55, 82, 110 and 160 mm diameter pipes, and includes intermediate and larger sizes.
