Astro Fire Rated Ceiling Air Valves
Astroflame Fire Rated Ceiling Air Valves
Quick Overview
- Fire rated ceiling air valves - supply and extract types.
- 60 Minutes Fire Rating in Solid Timber Joist Floor/Ceilings Constructions.
- 30 Minutes Fire Rating in Metal Web Joist and I-Beam.
- Timber Joist Floor/Ceiling Constructions.
- No maintenance required.
- Meets requirements of Approved Document B.
- Simple to install.
- Highly cost effective.

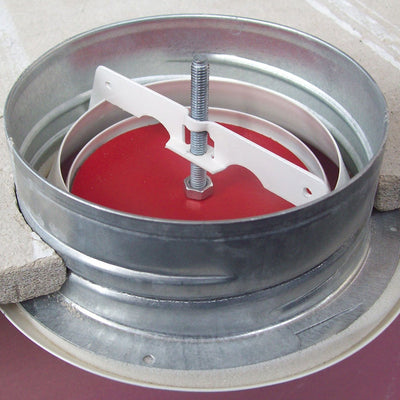

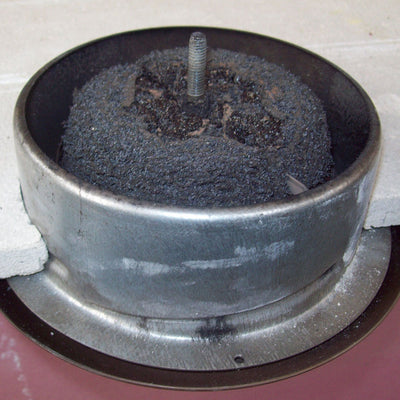

Astroflame’s Fire Rated Air Valves are a unique and cost effective fire rated solution where recessed ceiling air valves are to be installed in fire rated floor/ceiling constructions. In a fire situation, the integral intumescent material rapidly expands to seal off the air valve to help maintain the fire resistance rating of the ceiling. This limits the risk of fire and heat spread throughout the building.

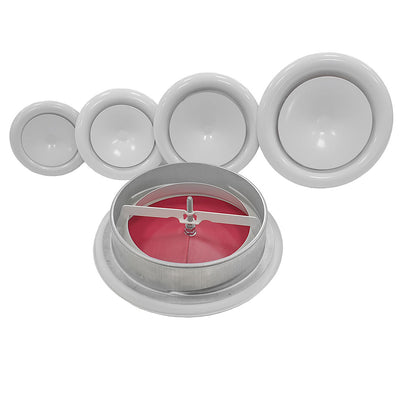

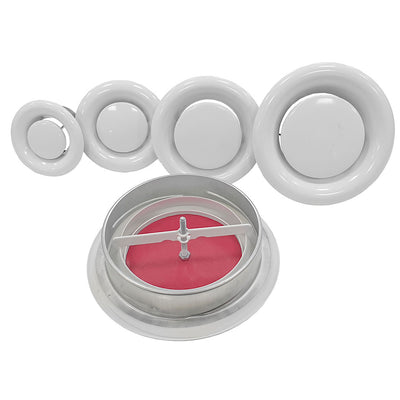

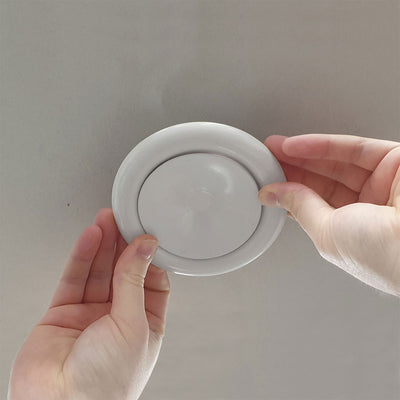

The Astro FR Ceiling Valve are available in all common sizes for both Extract and Supply. The Fire Rated Air Valve is installed as normal with air flow through the air valve unaffected. The product requires no maintenance after installation. The Astro FR Ceiling Valve suitable for domestic homes, as well as apartments, hotels and other multiple occupancy buildings where fire ratings exist.
Product Availability
| Product Code | Product Description | Diameter | Colour |
|---|---|---|---|
| AFFRCV80E | Astro FR Ceiling Valve 80mm Extract | 80mm | Traffic White (RAL 9016) |
| AFFRCV100E | Astro FR Ceiling Valve 100mm Extract | 100mm | Traffic White (RAL 9016) |
| AFFRCV125E | Astro FR Ceiling Valve 125mm Extract | 125mm | Traffic White (RAL 9016) |
| AFFRCV150E | Astro FR Ceiling Valve 150mm Extract | 150mm | Traffic White (RAL 9016) |
| AFFRCV200E | Astro FR Ceiling Valve 200mm Extract | 200mm | Traffic White (RAL 9016) |
| Product Code | Product Description | Diameter | Colour |
|---|---|---|---|
| AFFRCV80S | Astro FR Ceiling Valve 80mm Supply | 80mm | Traffic White (RAL 9016) |
| AFFRCV100S | Astro FR Ceiling Valve 100mm Supply | 100mm | Traffic White (RAL 9016) |
| AFFRCV125S | Astro FR Ceiling Valve 125mm Supply | 125mm | Traffic White (RAL 9016) |
| AFFRCV150S | Astro FR Ceiling Valve 150mm Supply | 150mm | Traffic White (RAL 9016) |
| AFFRCV200S | Astro FR Ceiling Valve 200mm Supply | 200mm | Traffic White (RAL 9016) |
