Astro CE Thermal Fire Pipe Sleeve

Astro CE Thermal Fire Pipe Sleeve

Quick Overview

• CE Marked.
• 4-in-1 Solution – Fire, Acoustic, Thermal and Vapour Seal.
• Up to EI120 Minutes Fire Rating in Gypsum Walls and Solid Floors.
• Up to EI240 Minutes Fire Rated in Solid Walls.
• Suitable for both Metal and Plastic Pipes.
• Simple & quick to install, no fixings or sleeving required.
• Available to suit pipe diameters of 15mm to 169mm.
• 1 length of Fire Sleeve can replace two fire collars.
• Lubrizol Approved.
• Cost effective, can be cut to length.

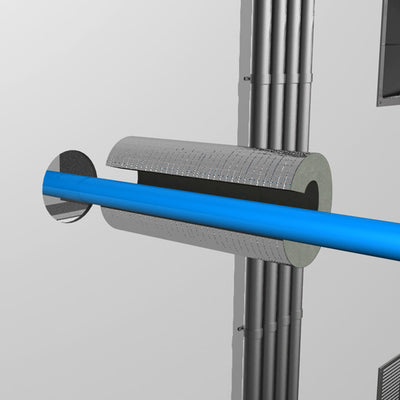

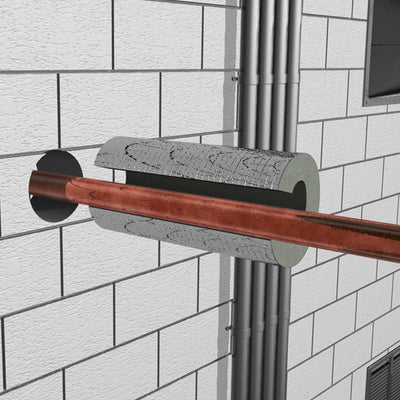

The Astro Thermal Fire PS are a range of passive fire protection penetration seals designed to firestop insulated metal and combustible plastic pipes.

The Fire Sleeves offer Fire, Acoustic, Thermal and Vapour seal performance to a range of pipes passing through various wall or floor constructions.

The CE Marked range are fire tested in accordance with EN 1366-3 with additional testing and assessments to BS 476 Part 20.

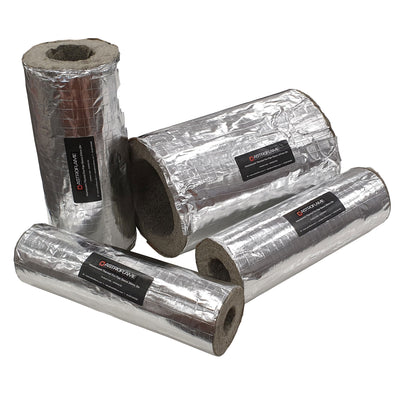

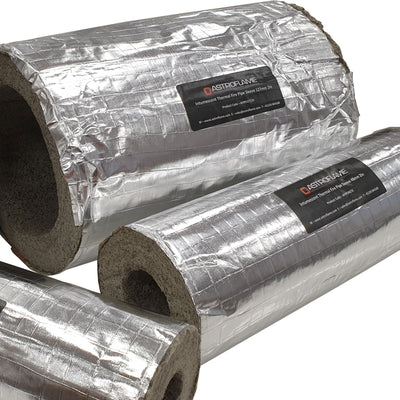

The Astro Thermal Fire PS are manufactured from a unique, low smoke, zero halogen intumescent material. The Fire Sleeves are supplied pre-formed and ready to install to suit a variety of pipe diameters.

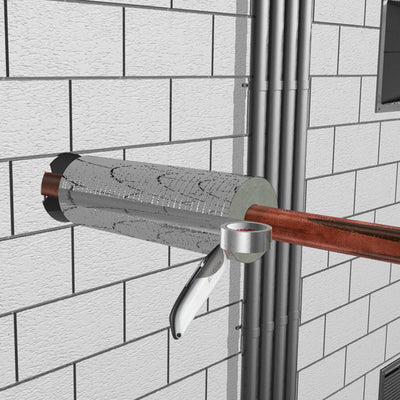

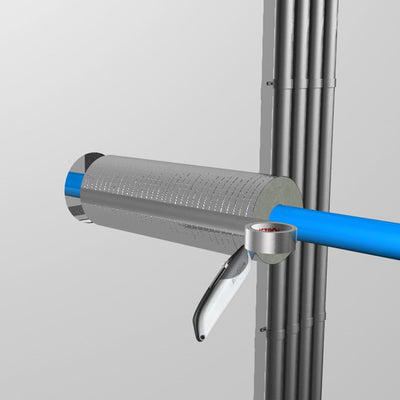

With a nominal thickness of 25mm, the compressible intumescent sleeve is supplied wrapped in a reinforced aluminium foil allowing it to be cut down its length and retro-fitted around the pipes. This provides an effective fire, smoke and acoustic seal whilst also allowing for some thermal movement. Fire Ratings of EI30, EI60, EI90, EI120 or even up to EI240 minutes are offered depending on the construction type.

Product Availability

Thermal Pipe Sleeve Length 300mm. Wall thickness 25mm.
