Astra 3003 Series Concealed Fire Door Closers

Astra 3003 Series Concealed Fire Door Closers

Manufactured in the UK, the Astra 3003 concealed door closer is suitable for door leafs up to 950mm wide. The closer is tested and certified to BS EN 1634-1 for use in 30 and 60 minute fire rated doors. Concealed into the door leaf and frame, the Astra 3003 reduces the risk of vandalism and creates an unobtrusive solution, ideal for doors to student accommodation or office spaces.

• Suitable for:
  • Internal single action doors
  • Doors weighing up to 60kg and measuring up to 950mm wide - EN size 3
  • Latched and unlatched doorsets
  • Left and right hand opening doors
• CE and UKCA marked
• Certified to BS EN 1634-1: 2000 and BS EN 1363-1: 1999
• Complies to EN 1154: 1997 + A1: 2002
• Suitable for 30 and 60 minute fire rated doors
• Conforms to DDA standards BS 8300
• Concealed closer with adjustable features to suit your doors
  • Closing speed controls how quickly the door closes
  • Latching action governs the speed of the door it requires to overcome the latch
• Allows the door to open up to 105°
• Endurance tested to 500,000 closing cycles

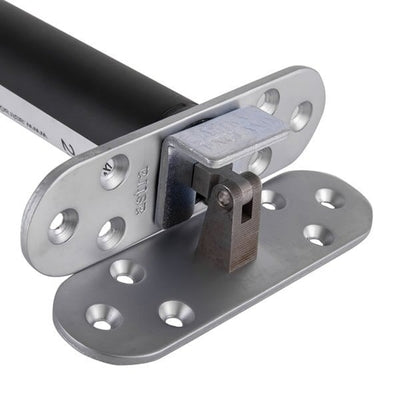

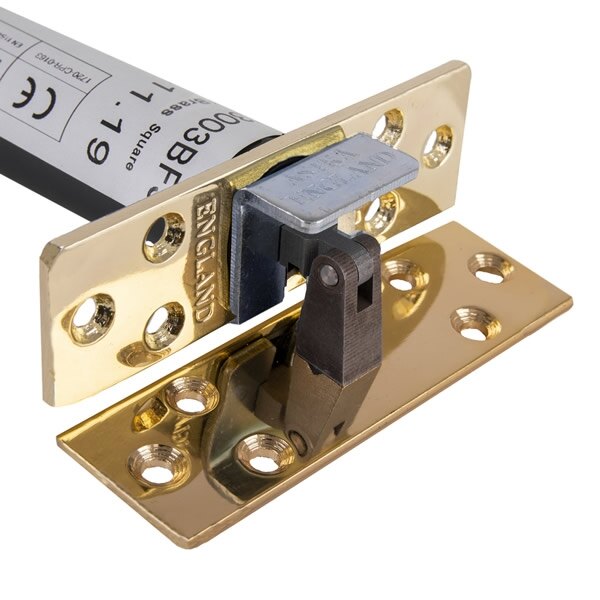

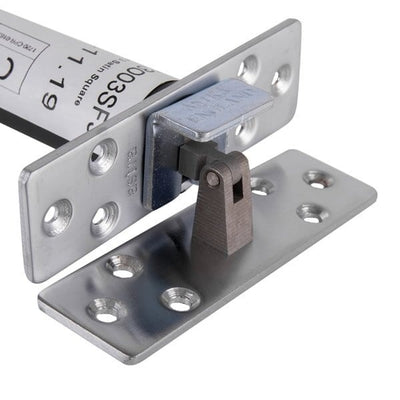

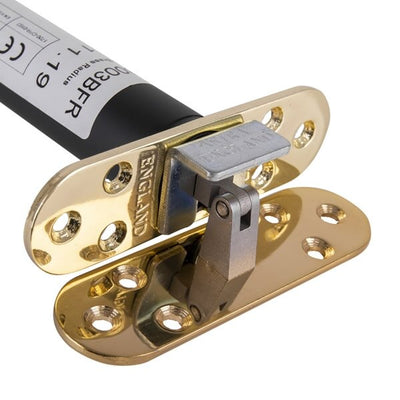

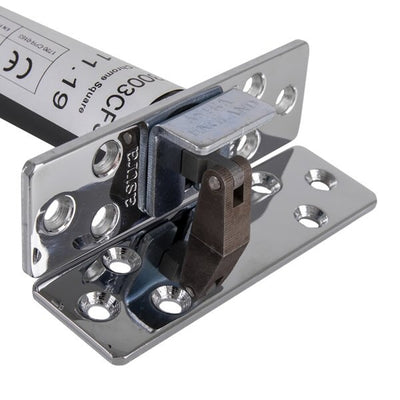

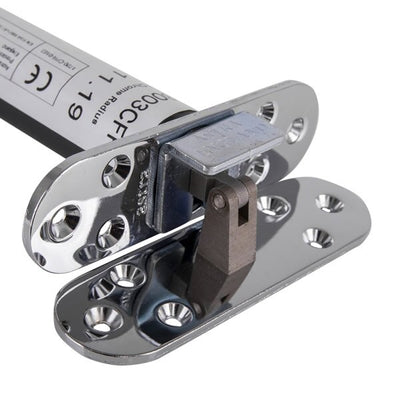

• Available with a rectangular or rounded plate in a choice of finishes
• Closer should be fitted by a competent joiner / craftsman

Please note: The Astra concealed door closers is unsuitable for doors fitted with projecting or rising butt hinges fitted. An installation kit, comprising of a fitting jig and auger bit is required for installation, and are available to purchase separately. These are not included.

Technical Data

Product Code	Rectangular Plate, Brass: FCAST3BS Rectangular Plate, Polished Chrome: FCAST3CS Rectangular Plate, Satin Chrome: FCAST3SS Rounded Plate, Brass: FCAST3BR Rounded Plate, Polished Chrome: FCAST3CR Rounded Plate, Satin Chrome: FCAST3SR
Brand	Astra
Adjustable Closing Speed	Yes
Adjustable Latching Action	Yes
Dimensions	Rectangular Plate Height: 106mm Rounded Plate Height: 110mm Rectangular / Rounded Plate Width: 32mm Rectangular / Rounded Plate Depth: 3.5mm Closer Body Diameter: 30mm SA Adjuster to First Fixing Plate Length: 273mm (-5mm / +15mm for Latching Action)
EN Size	Power Size 3
Weight	0.75kg
Product Datasheets	Astra-3000-series-fitting-instructions Astra-3003-CE-certification Astra-3003-declaration-of-performance Astra-3003-en1154-report Astra-3003-en1634-test-report Astra-3003-tuv-certificate-of-conformity
