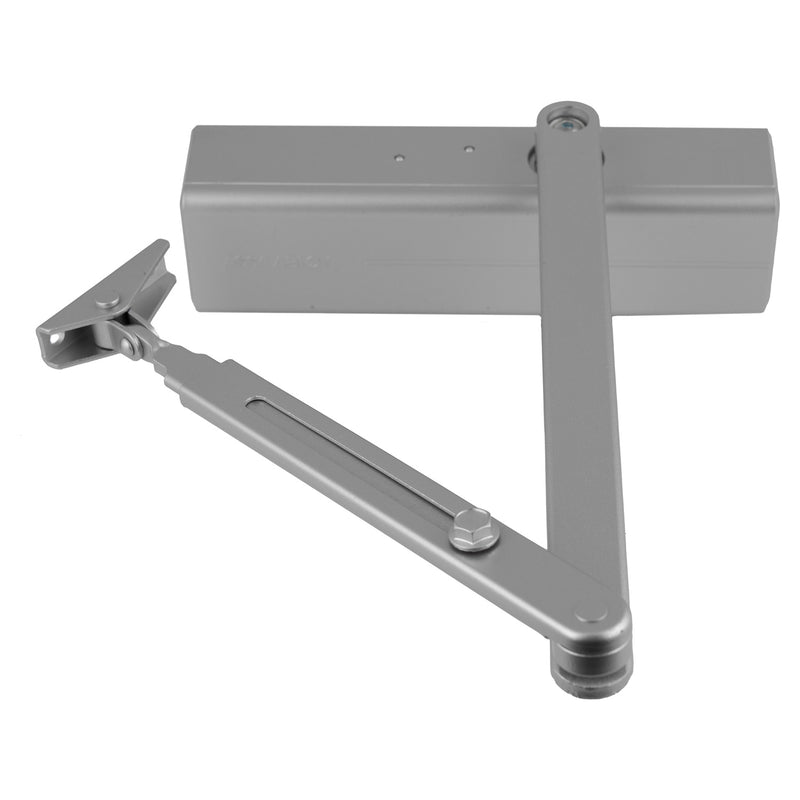

ASSA ABLOY DC140A Overhead Door Closer - Power Size EN 2-5

ASSA ABLOY DC140A Overhead Door Closer - Power Size EN 2-5

The DC140A overhead door closer from ASSA ABLOY is suitable for fire rated doors up to 120 minutes with an adjustable EN power size rating 2-5. The adjustable closing speed and power size ensure that fire doors up to 1250mm wide are closed effectively after every use combined with the adjustable latching to eliminate slamming. Designed for internal applications, the closer is supplied with all fixings to be fitted in configurations from both the push and pull side mounting.

• Suitable for:
  • Internal single action doors
  • Doors up to 1250mm and weighing up to 100kg – EN size 2-5
  • Installation in all three configurations, Fig 1, 61, and 66
  • Non-handed installation – suitable for left and right handed doors
• CE marked and approved to EN 1154
• Certifire approved for use on FD120 (Timber) and FD240 (Steel) fire rated doors – CF 5098 Certificate
• Adjustable features easily accessible from the front of the door closer
  • Closing speed controls how quickly the door closes between the maximum angle 170° and 15°
  • Latching action governs the speed of the final 15° of the cycle
  • Back check ensures that no damage is caused by the door when it is opened rapidly
• Fig 1 and Fig 61 classification 3 | 8 | 2-5 | 1 | 1 | 4
• Fig 66 classification 3 | 8 | 3 | 1 | 1 | 4
• Supplied with all fixings required for configurations
• 10 Year Warranty
• Available in silver as standard

Technical Data

Product Code	AADC140A
Alternative Product Codes	DC140A
Brand	ASSA ABLOY
Adjustable Back Check	Yes
Adjustable Closing Speed	Yes
Adjustable Latching Action	Yes
Classification	Fig 1 and 61: 4 | 8 | 2-4 | 1 | 1 | 4 Fig 66: 3 | 8 | 5 | 1 | 1 | 4
Dimensions (HxWxD)	55 x 206 x 41mm
EN Size	2 - 5
Opening Angle	170°
Weight	2.40kg
Product Datasheets	CF5098 DC140A DC140A Datasheet
